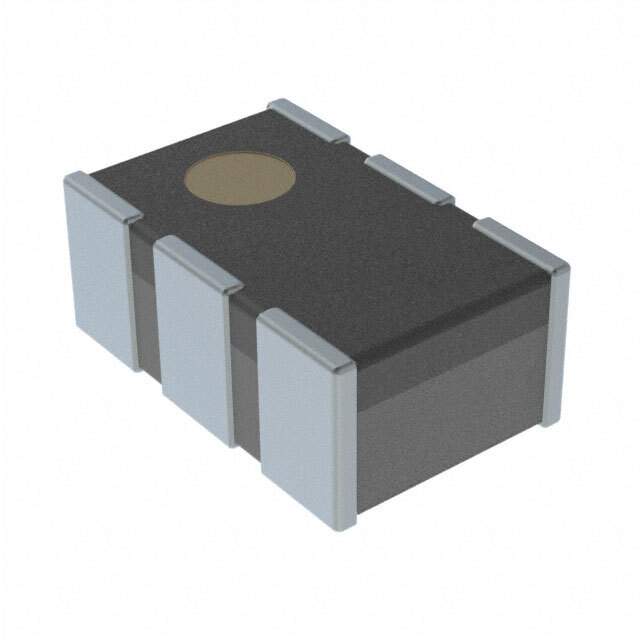

MEM2012SC100 Real Image
Same model may have multiple batches, images only for reference.

MEM2012SC100

Part No MEM2012SC100
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series MEM
Package Tape & Reel
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Resistance - Channel (Ohms) 0.15
Current 1 A
Values C = 10pF
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 12V
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 6 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1316177-MEM2012SC100
Ultra Librarian 3D Model Ultra Librarian MEM2012SC100 CAD Model

Description

The 1316177-MEM2012SC100 is a low pass EMI/RFI filter that is designed for use in data lines for mobile devices.

  • Rated Voltage: 12V
  • Current Rating: 1A
  • Filter Order: 3rd
  • Resistance: 0.15 ohms
  • Package: 0805 (2012 Metric), 6 PC Pad
  • Height: 0.037" (0.95mm)
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Manufacturer: TDK Corporation
