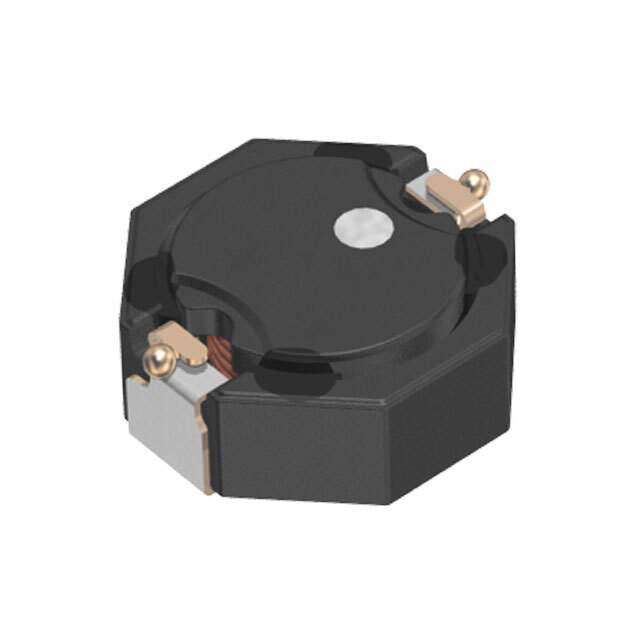

LTF5022T-1R8N3R6-LC TDK Corporation LTF5022T-1R8N3R6-LC Real Image LTF5022T-1R8N3R6-LC label picture LTF5022T-1R8N3R6-LC real image2189
Same model may have multiple batches, images only for reference.
LTF5022T-1R8N3R6-LC TDK Corporation LTF5022T-1R8N3R6-LC Real Image LTF5022T-1R8N3R6-LC label picture LTF5022T-1R8N3R6-LC real image2189
LTF5022T-1R8N3R6-LC TDK Corporation LTF5022T-1R8N3R6-LC Real Image LTF5022T-1R8N3R6-LC label picture LTF5022T-1R8N3R6-LC real image2189
Same model may have multiple batches, images only for reference.

LTF5022T-1R8N3R6-LC

Part No LTF5022T-1R8N3R6-LC
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 1.8uH 30% 100KHz Ferrite 3.8A 0.032Ohm DCR T/R / FIXED IND 1.8UH 3.8A 32 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1.8μH
Tolerance ±30%
Current Rating 3.8A
Current - Saturation 3.6A
DC Resistance (DCR) 32 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.087" (2.20mm)
Win Source Part Number 020691-LTF5022T-1R8N3R6-LC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LTF
Introduction Date November 11, 2010
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian LTF5022T-1R8N3R6-LC CAD Model

Description

The TDK Corporation LTF5022T-1R8N3R6-LC is a wirewound type inductor with the following specifications:

  • Current Rating: 3.8A
  • Inductance: 1.8µH
  • Height: 0.087" (2.20mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Supply and Demand: Balanced
  • Compliance: Halogen-free
  • Expected Lifespan: Until 2023
  • Applications: Inductors, Coils, and Chokes
