Same model may have multiple batches, images only for reference.

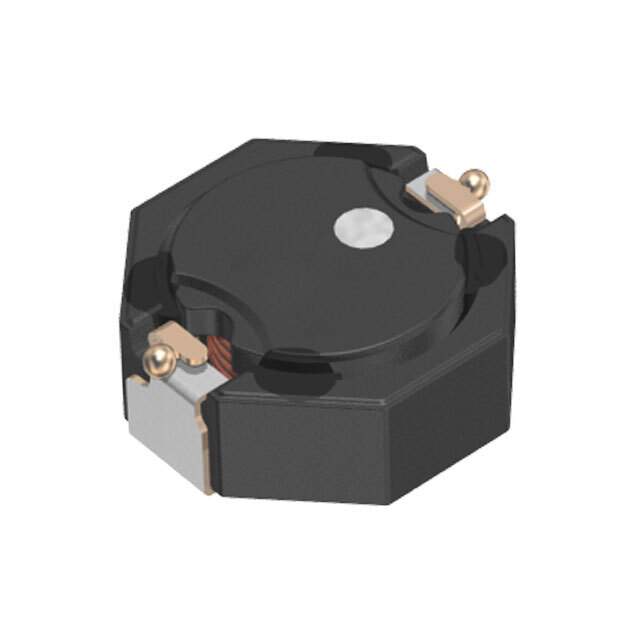

LTF5022T-101MR45-LC Real Image
Same model may have multiple batches, images only for reference.

LTF5022T-101MR45-LC

Part No LTF5022T-101MR45-LC
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 530MA 1.28 OHM
Datasheet
LTF5022T-101MR45-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series LTF5022T
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 530mA
Current - Saturation 450mA
Shielding Shielded
DC Resistance (DCR) 1.28 Ohm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.205" L x 0.197" W (5.20mm x 5.00mm)
Height - Seated (Maximum) 0.087" (2.20mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 754475-LTF5022T-101MR45-LC
Popularity Medium
Supply and Demand Status Balance
Family Name LTF
Introduction Date January 01, 2000
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LTF5022T-101MR45-LC CAD Model

Description

The TDK Corporation LTF5022T series wirewound inductor is a shielded component that has an inductance of 100μH and a current rating of 530mA.

  • Package: Nonstandard
  • Material: Ferrite
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 105°C
  • DC Resistance (DCR): 1.28 Ohm Max
  • Size: 0.205" L x 0.197" W (5.20mm x 5.00mm)
  • Mounting: SMD
  • Application: Inductors, Coils, and Chokes
  • Estimated EOL Date: 2028
