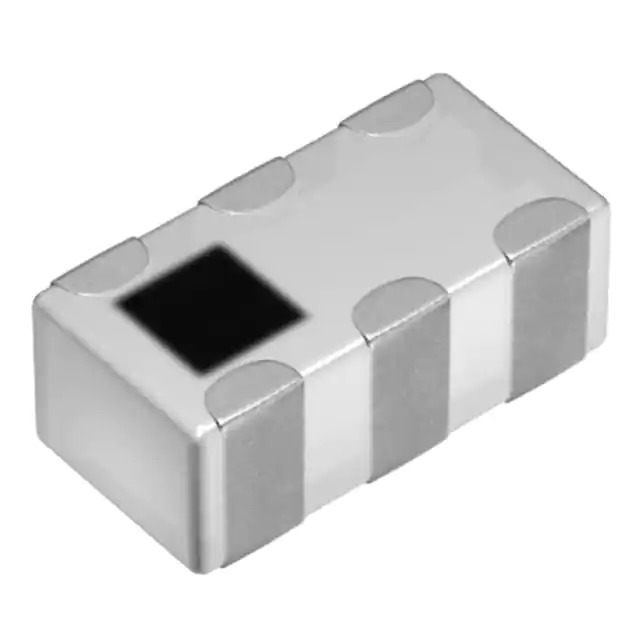

Same model may have multiple batches, images only for reference.
DEA162170LT-5039A5 TDK Corporation
Same model may have multiple batches, images only for reference.

DEA162170LT-5039A5

Part No DEA162170LT-5039A5
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS MULT LAY 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Filter Type Low Pass
Insertion Loss 0.85dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 6 PC Pad
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1373364-DEA162170LT-5039A5
Ultra Librarian 3D Model Ultra Librarian DEA162170LT-5039A5 CAD Model

Description

The DEA162170LT-5039A5 is a low pass RF filter from TDK Corporation.

  • Series: DEA
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height - Seated (Max): 0.028" (0.70mm)
  • Insertion Loss: 0.85dB
  • ECCN: EAR99
  • Packaging: Tape & Reel (TR)
  • Applications: RF Devices
