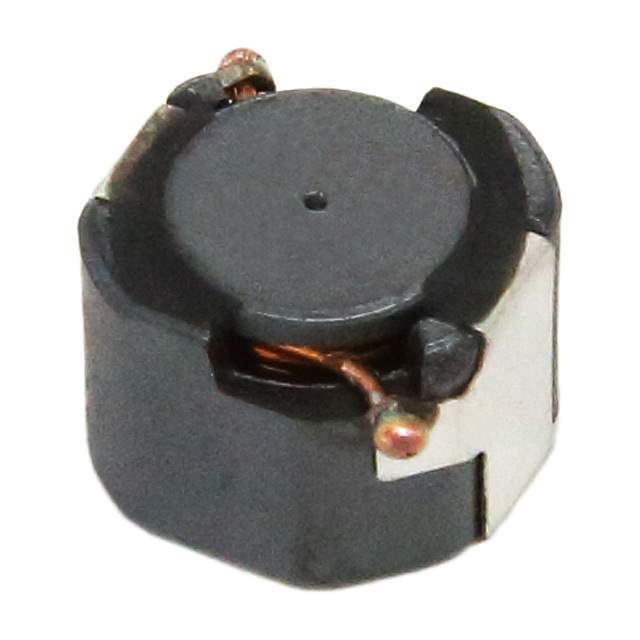

CLF6045T-150M-H Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-150M-H

Part No CLF6045T-150M-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 2A 55 MOHM SMD / Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 2A 0.055Ohm DCR Automotive T/R
Datasheet
CLF6045T-150M-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CLF-H
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 2A
Current - Saturation 1.5A
Shielding Shielded
DC Resistance (DCR) 55 mOhm
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 771584-CLF6045T-150M-H
Popularity Medium
Supply and Demand Status Balance
Family Name CLF
Introduction Date October 31, 2012
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian CLF6045T-150M-H CAD Model

Description

The TDK Corporation CLF-H series is a wirewound shielded inductor with a nonstandard package.

  • Inductance: 15μH
  • DC Resistance (DCR): 55 mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Tolerance: ±20%
  • Current Rating: 2A
  • Current Saturation: 1.5A
  • Core Material: Ferrite
  • Dimension: 0.244" L x 0.232" W (6.20mm x 5.90mm)
  • Height (Seated): 0.177" (4.50mm)
  • Family Name: CLF
  • Category: Inductors, Coils, Chokes
