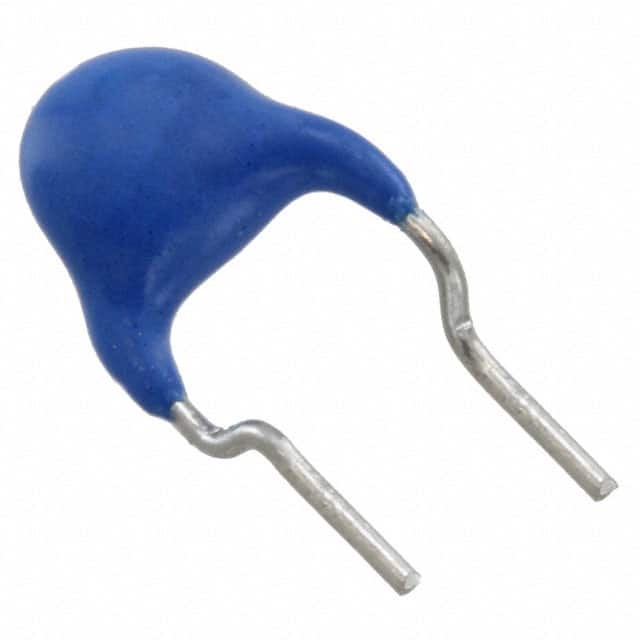

Same model may have multiple batches, images only for reference.
CK45-R3DD101K-NRA
Same model may have multiple batches, images only for reference.

CK45-R3DD101K-NRA

Part No CK45-R3DD101K-NRA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 2KV RADIAL / 100 pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45-RR
Package Bulk
Product Status Obsolete
Capacitance 100 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient R
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 866431-CK45-R3DD101K-NRA
Ultra Librarian 3D Model Ultra Librarian CK45-R3DD101K-NRA CAD Model

Description

The TDK Corporation CK45-R3DD101K-NRA is a high voltage ceramic capacitor from the CK45-RR series.

  • Capacitance: 100 pF
  • Tolerance: ±10%
  • Voltage: 2000V (2kV)
  • Temperature Coefficient: R
  • Application: General-Purpose
  • Mounting: Through-Hole
  • Package: Radial, Disc-Shaped
  • Size: 0.236" Dia (6.00mm)
  • Status: Obsolete
  • Standard Package: 1,000 pcs
