Same model may have multiple batches, images only for reference.

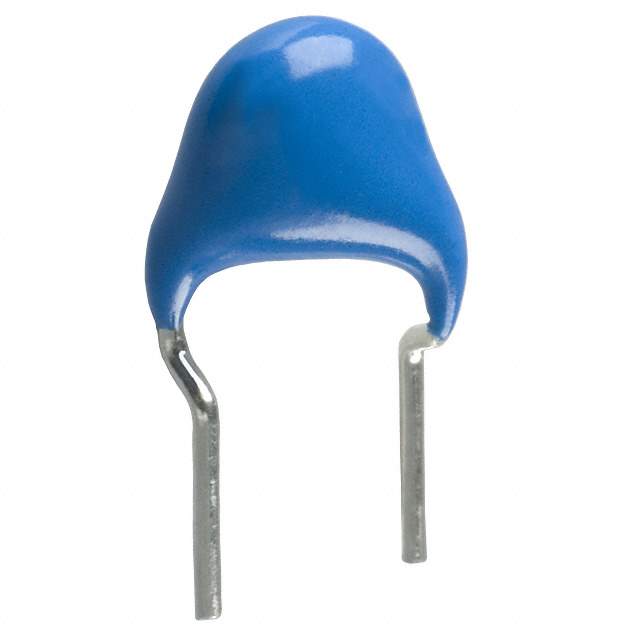

CK45-B3AD102KYGNA Real Image
Same model may have multiple batches, images only for reference.

CK45-B3AD102KYGNA

Part No CK45-B3AD102KYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1000PF 1KV RADIAL
Datasheet
CK45-B3AD102KYGNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Bulk
Status Active
Capacitance 1000pF
Tolerance ±10%
Voltage Rating 1000V (1kV)
Temperature Coefficient B
Temperature Range - Operating -25°C to 105°C
Features High Voltage
Applications General Purpose
Mounting Through Hole
Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
Win Source Part Number 1029263-CK45-B3AD102KYGNA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CK45-B3AD102KYGNA CAD Model

Description

TDK Corporation CK45-B3AD102KYGNA is a through-hole capacitor with a capacitance of 1000pF and a voltage rating of 1000V (1kV).

  • Capacitance: 1000pF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Temperature Coefficient: B
  • Lead Spacing: 0.197" (5.00mm)
  • Lead Style: Straight
  • Height - Seated (Max): 0.394" (10.00mm)
  • Operating Temperature: -25°C to 105°C
  • Dimension: 0.236" Dia (6.00mm)
  • Applications: Capacitors
