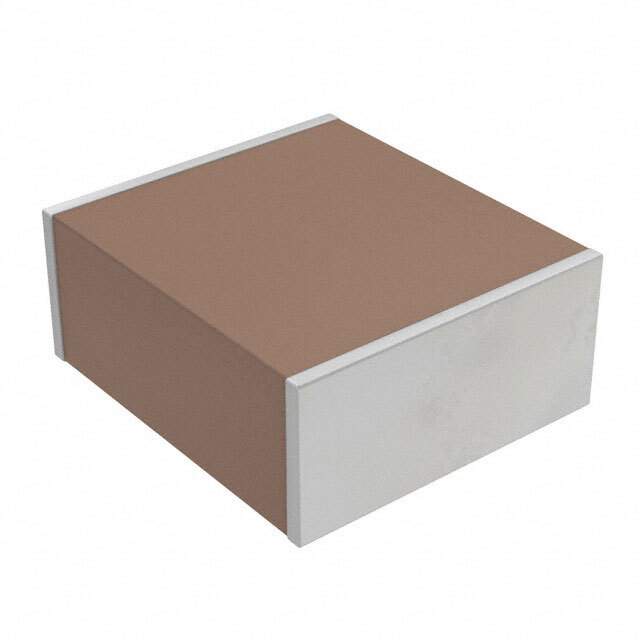

CGA9N3X7R1E476M230KB Real Image
Same model may have multiple batches, images only for reference.

CGA9N3X7R1E476M230KB

Part No CGA9N3X7R1E476M230KB
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 47UF 25V X7R 2220 / 47 µF ±20% 25V Ceramic Capacitor X7R 2220 (5750 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series CGA
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Type Surface Mount, MLCC
Package / Case 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Max) 0.098" (2.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 445-174773-2,445-174773-1,445-174773-6,CGA9N3X7R1E476MT0Y0N
Standard Package 500
Win Source Part Number 1013313-CGA9N3X7R1E476M230KB
Ultra Librarian 3D Model Ultra Librarian CGA9N3X7R1E476M230KB CAD Model

Description

The TDK Corporation CGA series ceramic capacitor is a surface-mount, multi-layer ceramic capacitor (MLCC) designed for use in automotive applications.

  • Product: TDK Corporation CGA series ceramic capacitor
  • Application: Automotive
  • Capacitance: 47 µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Temperature Coefficient: X7R
  • Packaging: Tape and Reel
  • Standard Package: 500
  • Height: 0.098" (2.50mm)
  • Dimensions: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • REACH Unaffected: Yes
  • ECCN: EAR99
