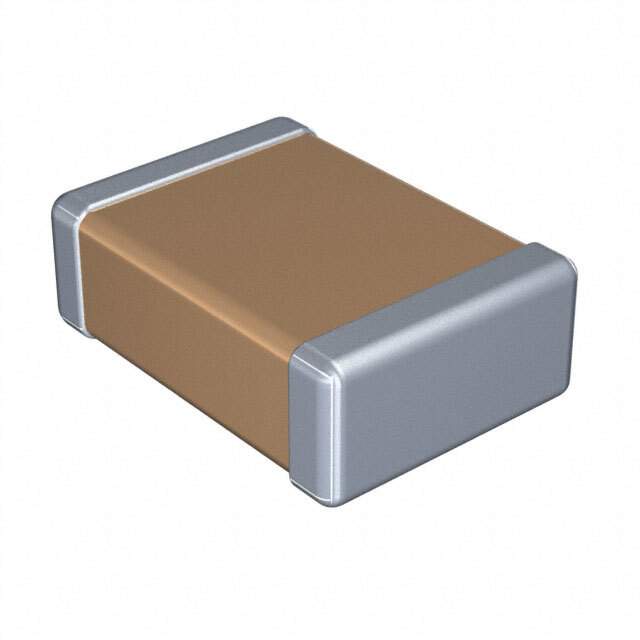

The C4532X7R2J104KT020S is a multilayer ceramic capacitor (MLCC) from TDK Corporation. It is designed for general-purpose applications requiring stable capacitance over a wide range of temperatures and voltages. This capacitor features a high capacitance value in a relatively small package size, making it suitable for use in various electronic circuits.

Applications

• Power supply circuits: Used for smoothing and filtering DC voltage.
• Bypass capacitors: Provides a low-impedance path for high-frequency signals, reducing noise.
• Decoupling capacitors: Prevents voltage drops and stabilizes voltage levels in digital circuits.
• Consumer electronics: Found in devices like smartphones, tablets, and laptops.
• Automotive electronics: Used in various automotive systems, including engine control units (ECUs) and infotainment systems.

Features

• High capacitance: Offers a capacitance value of 0.1µF (100nF).
• Compact size: 4.5mm x 3.2mm (1812 size).
• X7R dielectric: Provides stable capacitance over a temperature range of -55°C to +125°C.
• Voltage rating: Rated for 63V DC.
• RoHS compliant: Compliant with Restriction of Hazardous Substances directive.
• Surface mount technology (SMT): Designed for automated assembly on printed circuit boards (PCBs).

Benefits

• Stable performance: The X7R dielectric ensures reliable capacitance over temperature variations.
• Noise reduction: Effective decoupling and bypass characteristics minimize unwanted signal noise.
• Space-saving design: The compact size allows for high-density component placement on PCBs.
• Long lifespan: Ceramic capacitors offer excellent reliability and long-term stability.
• Easy assembly: SMT design facilitates automated and efficient manufacturing processes.

Additional Details

The C4532X7R2J104KT020S is constructed using a multilayer ceramic structure with nickel barrier termination. This construction enhances solderability and prevents silver migration. The capacitor's equivalent series resistance (ESR) is relatively low, improving its performance in high-frequency applications. The operating temperature range is from -55°C to +125°C, making it suitable for a wide range of environmental conditions. Its tolerance is 10%.
