Same model may have multiple batches, images only for reference.

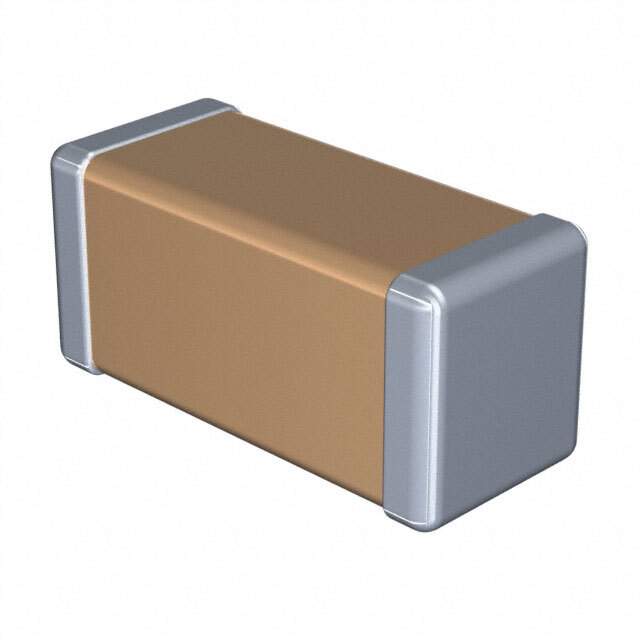

C4520C0G3F220K110KA Real Image
Same model may have multiple batches, images only for reference.

C4520C0G3F220K110KA

Part No C4520C0G3F220K110KA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 22PF 3KV C0G 1808 / Cap Ceramic 22pF 3000V C0G 10% Pad SMD 1808 125°C T/R
Datasheet
C4520C0G3F220K110KA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series C
Packaging Reel package
Capacitance 22pF
Tolerance ±10%
Voltage Rating DC 3000V (3kV)
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 1808 (4520 Metric)
Dimension 0.177" L x 0.079" W (4.50mm x 2.00mm)
Thickness (Maximum) 0.051" (1.30mm)
Win Source Part Number 770994-C4520C0G3F220K110KA
Popularity Medium
Supply and Demand Status Balance
Family Name C
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian C4520C0G3F220K110KA CAD Model

Description

The TDK Corporation C4520C0G3F220K110KA is a surface mount MLCC capacitor manufactured by TDK Corporation.

  • Capacitance: 22pF
  • Tolerance: ±10%
  • Voltage Rating DC: 3000V (3kV)
  • Operating Temperature: -55°C ~ 125°C
  • Thickness (Maximum): 0.051" (1.30mm)
  • Halogen Free: Yes
