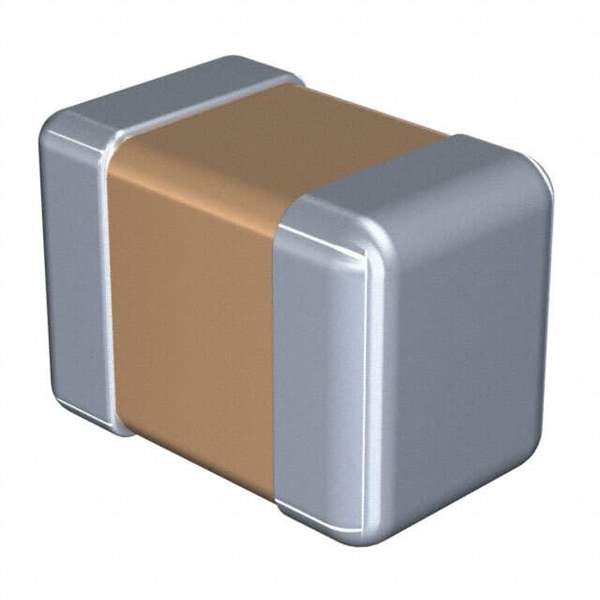

The C2012JB1H224K is a multilayer ceramic capacitor (MLCC) from TDK Corporation. This capacitor is designed for general-purpose applications requiring stable performance. Its size makes it suitable for various electronic devices.

Applications

• General Purpose Applications: Used across a broad range of electronic circuits.
• Bypass Capacitors: Filters out high-frequency noise from power supply lines.
• Decoupling Capacitors: Reduces noise and stabilizes voltage in sensitive circuits.
• Smoothing Capacitors: Helps to smooth out voltage fluctuations in power supplies.
• Filtering Circuits: Filters unwanted frequencies in signal processing applications.

Features

• X5R Dielectric: Provides good capacitance stability over a range of temperatures.
• Compact Size (2012): Small footprint allows for efficient board utilization.
• High Capacitance Value: Offers a high capacitance value for its size.
• Reliable Performance: Known for consistent and dependable operation.
• RoHS Compliant: Meets environmental standards for hazardous substance control.

Benefits

• Versatile Application: Suitable for a wide variety of electronic circuits.
• Effective Noise Reduction: Minimizes noise and maintains signal integrity.
• Space Saving: Compact size enables higher component density.
• Cost-Effective: Offers a good balance of performance and price.
• Improved Circuit Stability: Enhances the overall stability and reliability of electronic circuits.

Specifications

The C2012JB1H224K has a capacitance of 0.22 µF, a voltage rating of 50V, and a tolerance of ±10%. The operating temperature range is typically -55°C to +85°C. The case size is 2012 (0805 in imperial units), which means the capacitor has dimensions of 2.0mm x 1.25mm. Termination is typically Nickel Barrier with Tin plating.
