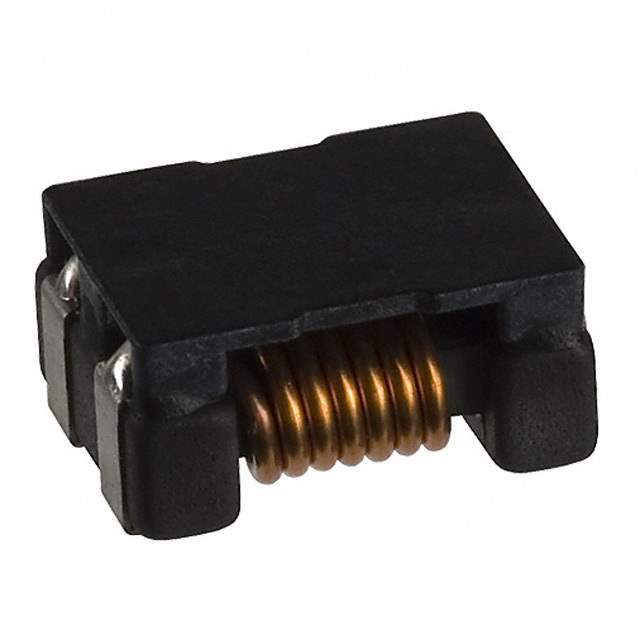

ACM9070-701-2PL-TL Real Image
Same model may have multiple batches, images only for reference.

ACM9070-701-2PL-TL

Part No ACM9070-701-2PL-TL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 5A 2LN 700 OHM SMD
Datasheet
ACM9070-701-2PL-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 10 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 090828-ACM9070-701-2PL-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM9070-701-2PL-TL CAD Model

Description

Product Overview

The ACM9070-701-2PL-TL is designed as a premium solution for projects requiring exacting technical specifications. It provides excellent performance and consistency.

Features and Benefits

  • Highly configurable
  • Resilient to environmental factors
  • Low distortion output
  • Efficient thermal handling

Applications

  • Data center equipment
  • Renewable energy solutions
  • Medical instrumentation
  • High-end audio systems

Additional Details: Developed with the latest technology, it offers unparalleled reliability and is easy to integrate into existing infrastructures.
