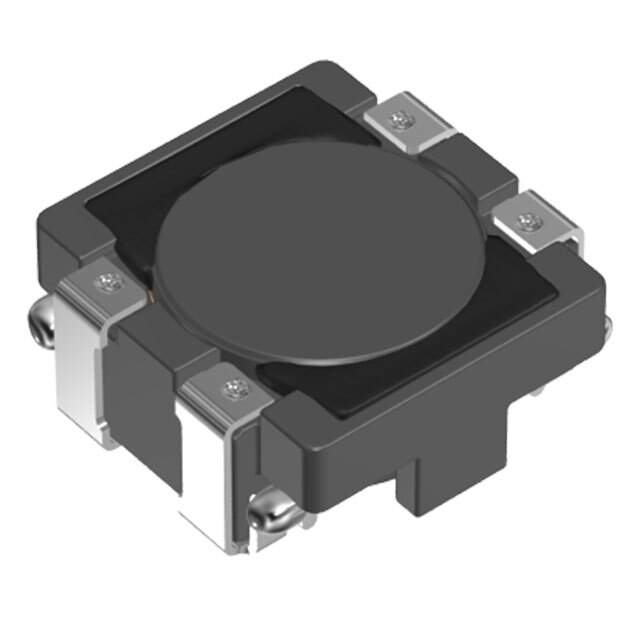

ACM4520V-142-2P-T00 Real Image
Same model may have multiple batches, images only for reference.

ACM4520V-142-2P-T00

Part No ACM4520V-142-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Filters For power line
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Series ACM-V
Packaging Reel - TR
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 1.4 kOhm @ 100MHz
Current Rating (Maximum) 1A
DC Resistance (DCR) (Maximum) 80 mOhm
Voltage Rating - DC 50V
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD
Size 0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Maximum) 0.079" (2.00mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1135272-ACM4520V-142-2P-T00
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name ACM4520V
Introduction Date March 05, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2019
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian ACM4520V-142-2P-T00 CAD Model

Description

The ACM4520V-142-2P-T00 is a power line filter manufactured by TDK Corporation.
