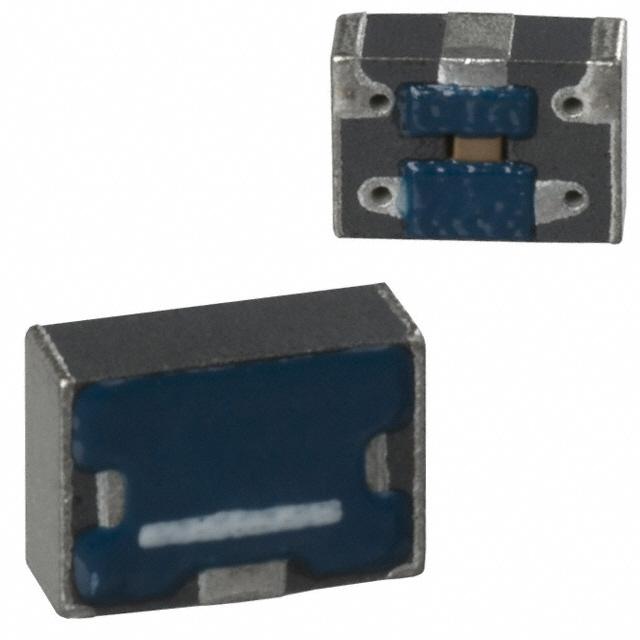

Same model may have multiple batches, images only for reference.
ACH4518-151-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH4518-151-TD01

Part No ACH4518-151-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-151-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 190MHz to 290MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 113970-ACH4518-151-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-151-TD01 CAD Model

Description

ACH4518-151-TD01 Description

The ACH4518-151-TD01 is engineered for optimum efficiency and reliability, making it an excellent choice for complex applications that demand precision and high standard performance.

  • Application/Projects:
    • IoT devices
    • Electric vehicles
    • Smart grid technologies
    • Instrumentation control
  • Features and Benefits:
    • Exceptional precision and control
    • Highly adaptable for diverse uses
    • Energy-efficient design
    • Durable construction
  • Additional Details:
    • Structured to exceed performance expectations
    • Effortless integration and operation
