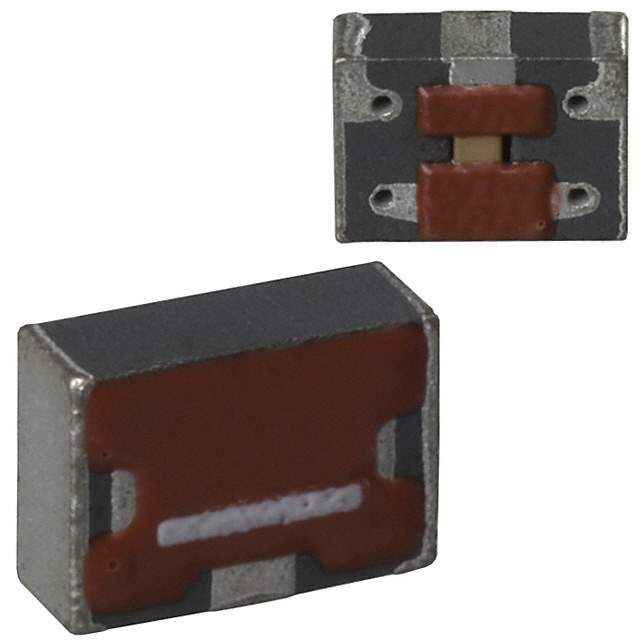

ACF451832-681-TLD01 Real Image
Same model may have multiple batches, images only for reference.

ACF451832-681-TLD01

Part No ACF451832-681-TLD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF451832-681-TLD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 75MHz to 160MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height 0.079" (2.00mm)
Win Source Part Number 1011592-ACF451832-681-TLD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF451832-681-TLD01 CAD Model

Description

The TDK Corporation ACF451832-681-TLD01 is a low pass filter designed for data lines in mobile devices.

  • Voltage Rating: 50V
  • Current Rating: 300mA
  • Filter Order: 3rd
  • Attenuation: 25dB @ 75MHz to 160MHz
  • Technology: LC (T-type)
  • Height: 0.079 inches (2.00mm)
  • Dimension: 0.177 inches L x 0.126 inches W (4.50mm x 3.20mm)
  • Mounting: SMD (SMT)
  • Resistance: 0.15 ohms
  • ESD Protected: no
  • Recommendation: not recommended for new designs
  • Operating Temperature Range: -25°C to 85°C
