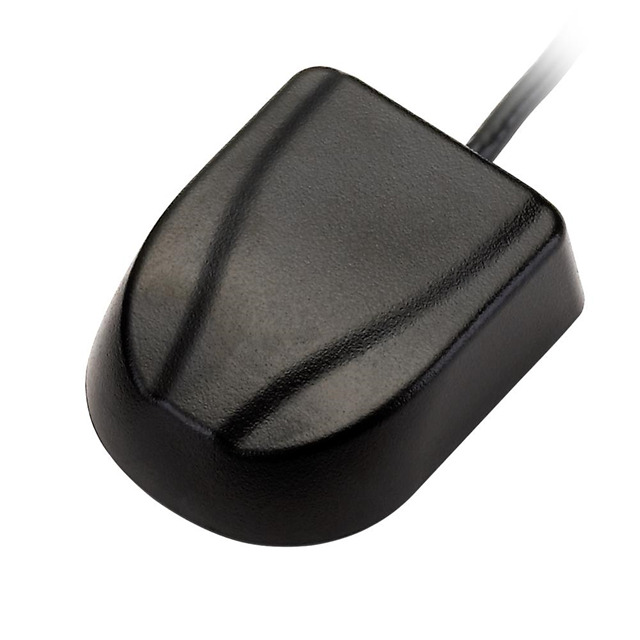

AP.12F.07.0045A

Part No AP.12F.07.0045A
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575GHZ CER PATCH MHFI
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 2
Gain -5dBic
Features LNA, Filter
Termination U.FL (UMCC), I-PEX MHF1
Mounting Type Adhesive
Height (Max) 0.138" (3.50mm)
Applications GPS
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1510769-AP.12F.07.0045A
Ultra Librarian 3D Model Ultra Librarian AP.12F.07.0045A CAD Model
