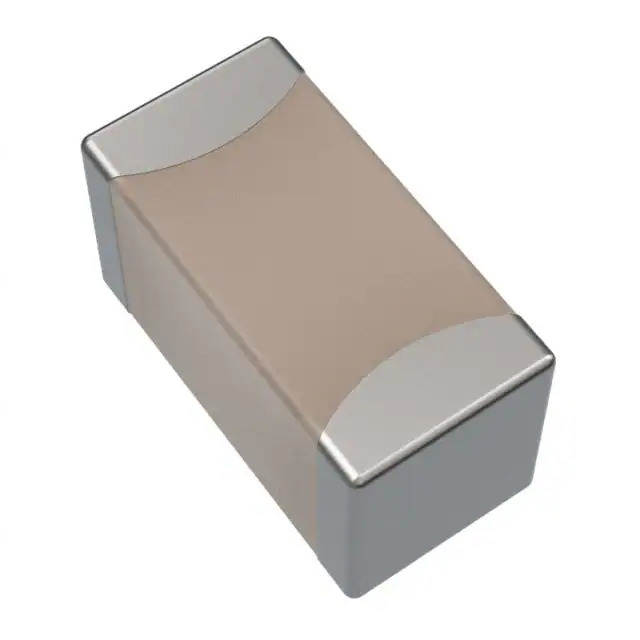

Same model may have multiple batches, images only for reference.
TMF316AB7475MLHT Taiyo Yuden
Same model may have multiple batches, images only for reference.

TMF316AB7475MLHT

Part No TMF316AB7475MLHT
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 4.7UF 25V X7R 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Taiyo Yuden
Series M
Package Tape & Reel
Product Status Not For New Designs
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings AEC-Q200
Applications Automotive, SMPS Filtering
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) -
Thickness (Max) 0.071" (1.80mm)
Lead Spacing -
Lead Style -
Base Product Number TMF316A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1380087-TMF316AB7475MLHT
Ultra Librarian 3D Model Ultra Librarian TMF316AB7475MLHT CAD Model

Description

The TMF316AB7475MLHT is a ceramic capacitor from Taiyo Yuden's M series. It offers a capacitance of 4.7 μF and a voltage rating of 25V.

  • Series: M
  • Capacitance: 4.7 μF
  • Voltage - Rated: 25V
  • Applications: Automotive, SMPS Filtering
  • Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height - Seated (Max): -
  • Mounting Type: Surface Mount, MLCC
  • Package / Case: 1206 (3216 Metric)
  • Operating Temperature: -55°C ~ 125°C
  • Temperature Coefficient: X7R
  • Packaging: Tape & Reel (TR)
