Same model may have multiple batches, images only for reference.

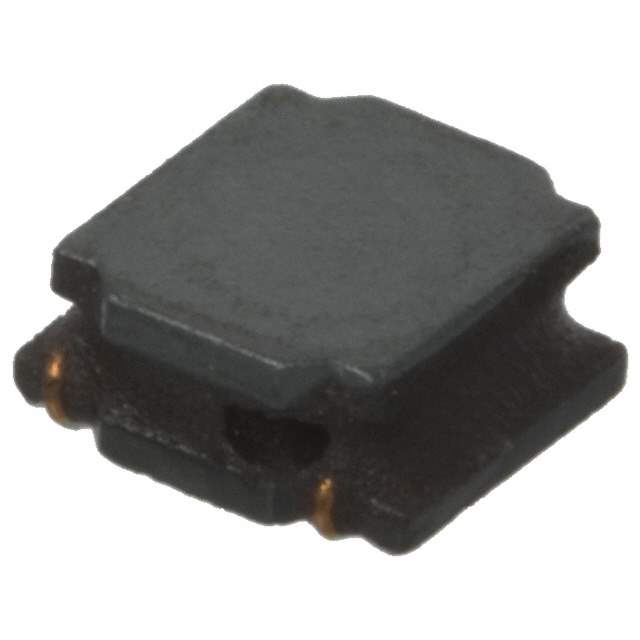

NRS2012T4R7MGJ Real Image
Same model may have multiple batches, images only for reference.

NRS2012T4R7MGJ

Part No NRS2012T4R7MGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 910MA 241 MOHM
Datasheet
NRS2012T4R7MGJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 910mA
Current - Saturation 900mA
DC Resistance (DCR) 241 mOhm
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 116477-NRS2012T4R7MGJ
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian NRS2012T4R7MGJ CAD Model

Description

This wirewound inductor is manufactured by Taiyo Yuden and has a part number of 116477-NRS2012T4R7MGJ.

  • Packaging: Reel - TR
  • Maximum Seated Height: 0.047" (1.20mm)
  • Inductance: 4.7μH
  • Current Rating: 910mA
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance (DCR): 241 mOhm
  • Current Saturation: 900mA
  • Operating Temperature Range: -25°C to 120°C
  • Category: Inductors, Coils, Chokes
  • Status: Active
  • Supply and Demand Status: Sufficient
  • Package: 2,500
