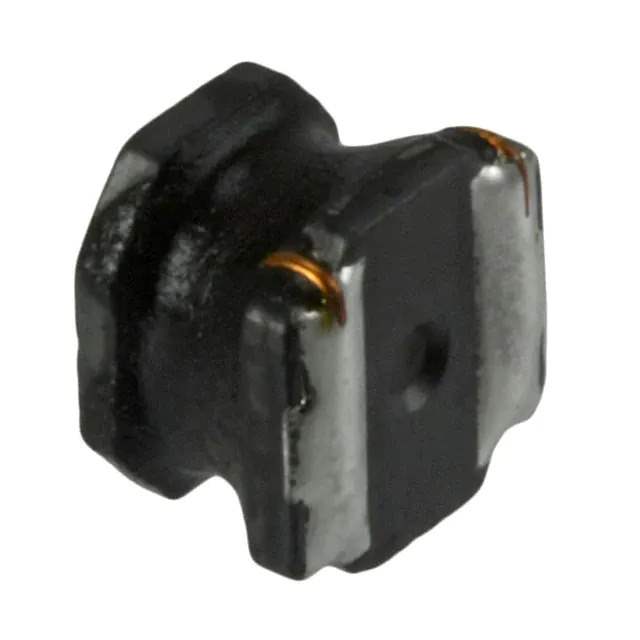

NR5040T470M Real Image
Same model may have multiple batches, images only for reference.

NR5040T470M

Part No NR5040T470M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 47UH 900MA 403MOHM SMD
Datasheet
NR5040T470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 403mOhm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 649383-NR5040T470M
Ultra Librarian 3D Model Ultra Librarian NR5040T470M CAD Model

Description

The NR5040T470M is a fixed inductor from Taiyo Yuden's NR series.

  • Series: NR
  • Type: Drum core, wirewound, shielded
  • Size: 0.193" L x 0.193" W (4.90mm x 4.90mm)
  • Inductance: 47 µH
  • Maximum Seated Height: 0.157" (4.00mm)
  • Mounting: Surface mountable
  • Package: Nonstandard
  • DC Resistance (DCR): 403mOhm Max
  • Temperature Range: -25°C to 120°C
  • Status: Not for new designs
  • Current Rating: 900 mA
  • Core Material: Ferrite
