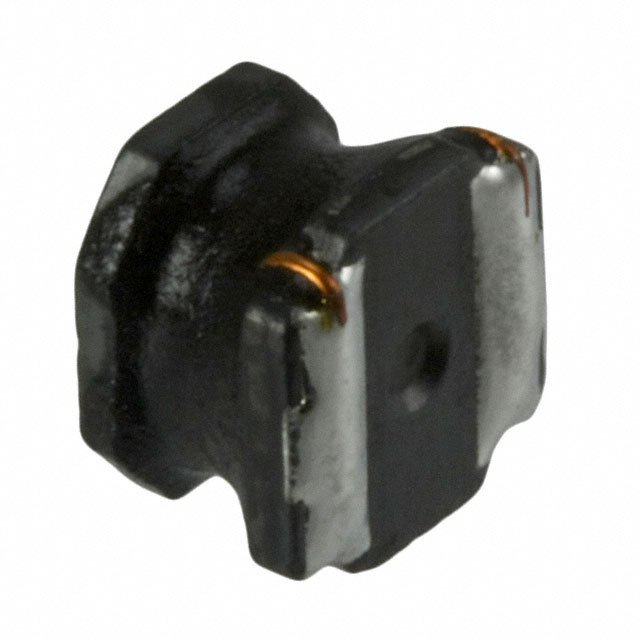

NR5040T1R5N Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR5040T1R5N

Part No NR5040T1R5N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 3.6A 26 MOHM SMD
Datasheet
NR5040T1R5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±30%
Current Rating 3.6A
Current - Saturation 6A
DC Resistance (DCR) 26 mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.161" (4.10mm)
Win Source Part Number 004076-NR5040T1R5N
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian NR5040T1R5N CAD Model

Description

The Taiyo Yuden 004076-NR5040T1R5N is a wirewound inductor with a current rating of 3.6A and an inductance of 1.5μH.

  • Core Material: Ferrite
  • Tolerance: ±30%
  • DC Resistance: 26 mOhm max
  • Temperature Range: -25°C to 120°C
  • Status: Active
  • Packaging: Reel - TR
  • Height: 0.161" (4.10mm)
  • Applications: Inductors, coils, and chokes
