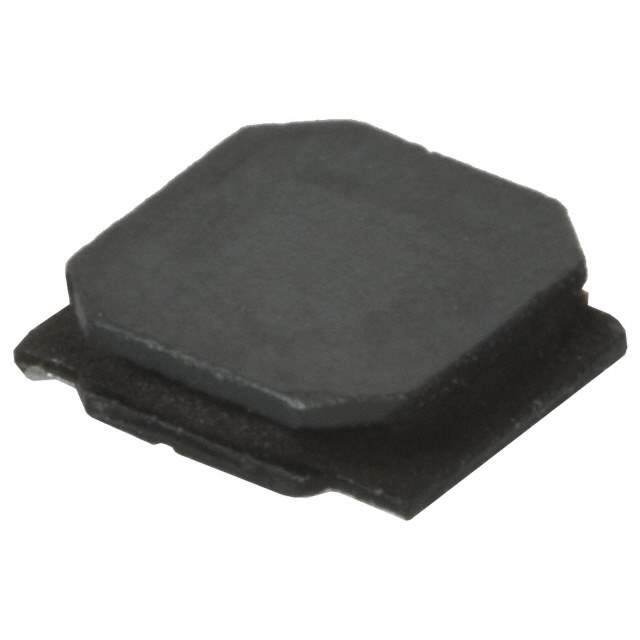

NR4012T3R3M Real Image
Same model may have multiple batches, images only for reference.

NR4012T3R3M

Part No NR4012T3R3M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 3.3UH 980MA 156 MOHM
Datasheet
NR4012T3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 980mA
Current - Saturation 1.2A
DC Resistance (DCR) 156 mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 109517-NR4012T3R3M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian NR4012T3R3M CAD Model

Description

The Taiyo Yuden 109517-NR4012T3R3M is a wirewound inductor, coil, choke that is used in various electronic applications.

  • Current Rating: 980mA
  • Temperature Range: -25°C to 120°C
  • Mounting: SMD (SMT)
  • Inductance: 3.3μH
  • Tolerance: ±20%
  • Material - Core: Ferrite
  • Current - Saturation: 1.2A
  • Frequency - Self-Resonant: 50MHz
  • Frequency - Test: 100kHz
  • DC Resistance (DCR): 156 mOhm Max
  • Packaging: Reel - TR package
  • Quantity: 4,500
  • Supply and Demand Status: Balance
