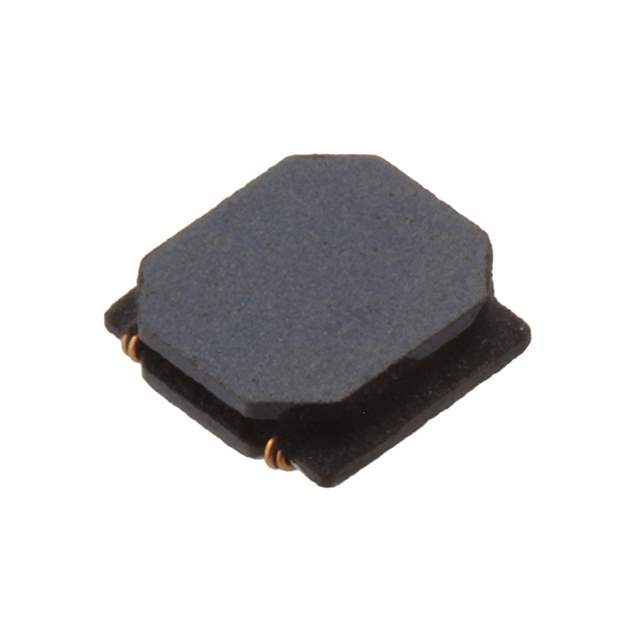

MDWK4040T100MM Real Image
Same model may have multiple batches, images only for reference.

MDWK4040T100MM

Part No MDWK4040T100MM
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 10UH 1.6A 194 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 1.6 A 194mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Taiyo Yuden
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Metal
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 3.1A
Shielding Shielded
DC Resistance (DCR) 194mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 587-4453-6,LM MDWK4040T100MM,587-4453-2,587-4453-1
Standard Package 700
Win Source Part Number 1327588-MDWK4040T100MM
Ultra Librarian 3D Model Ultra Librarian MDWK4040T100MM CAD Model

Description

The Taiyo Yuden MDWK4040T100MM is a fixed inductor that comes in a surface mount package.

  • Win Source part number: 1327588-MDWK4040T100MM
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 10 μH
  • Tolerance: ±20%
  • Type: Shielded drum core, wirewound
  • Current Rating: 1.6 A
