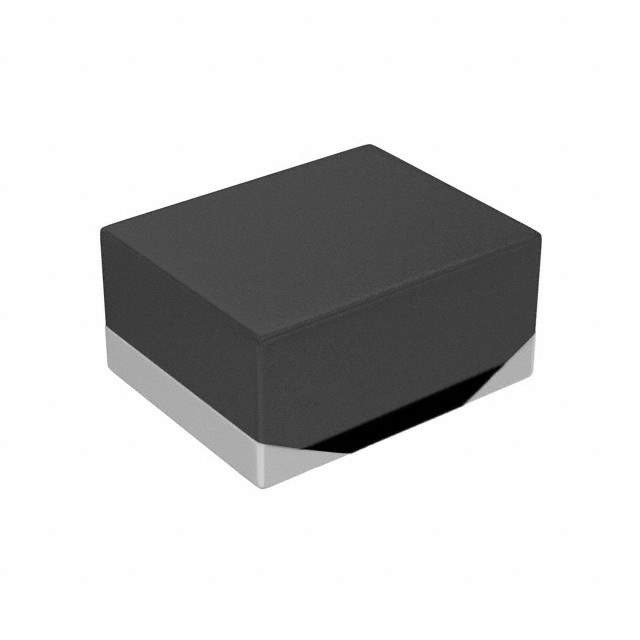

MAKK2520H2R2M Real Image
Same model may have multiple batches, images only for reference.

MAKK2520H2R2M

Part No MAKK2520H2R2M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description Inductor Power Chip Wirewound 2.2uH 20% 2MHz Metal 1.8A 0.12Ohm DCR 1008 T/R / FIXED IND 2.2UH 1.8A 120 MOHM
Datasheet
MAKK2520H2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series MCOIL, MA
Packaging Reel package
Type Wirewound
Material - Core Metal
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.8A
Current - Saturation 2.5A
Shielding Shielded
DC Resistance (DCR) 120 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 2MHz
Mounting SMD
Package Nonstandard
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 785186-MAKK2520H2R2M
Popularity Medium
Supply and Demand Status Limited
Family Name MA
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian MAKK2520H2R2M CAD Model

Description

The MAKK2520H2R2M is an electronic component manufactured by Taiyo Yuden.

  • Series: MCOIL and MA
  • Type: Wirewound
  • Shielding: Shielded
  • Operating Temperature: -40°C to 105°C
  • Current Rating: 1.8A
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Supply and Demand Status: Limited
