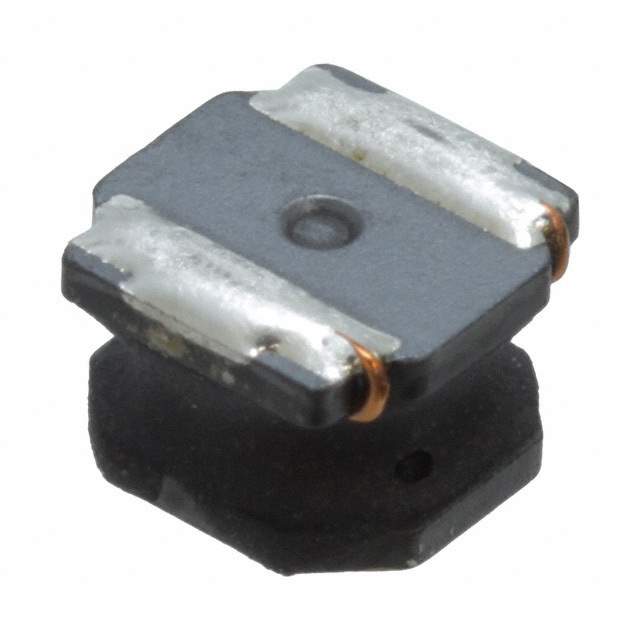

The LMNRS6045T100MMGK is a shielded power inductor manufactured by Taiyo Yuden. Power inductors are essential components in power electronic circuits, used for energy storage and filtering. The LMNRS6045T100MMGK is designed for surface mount technology (SMT) assembly, enabling automated and efficient placement on printed circuit boards (PCBs). The "LM" series indicates a molded inductor, providing enhanced shielding and robust construction.

Applications

• DC-DC Converters: Used in buck, boost, and buck-boost converters for voltage regulation and power management.
• Power Supplies: Employed in switching power supplies and linear regulators for filtering and energy storage.
• LED Lighting: Integrated into LED drivers for efficient power conversion and current regulation.
• Portable Devices: Found in smartphones, tablets, and laptops for power management and battery charging circuits.
• Automotive Electronics: Utilized in automotive power supplies and control units for reliable power delivery in harsh environments.

Features

• Shielded Construction: Minimizes electromagnetic interference (EMI) and reduces noise in sensitive circuits.
• Surface Mount Technology (SMT): Designed for automated assembly, reducing manufacturing time and costs.
• Small Form Factor: Compact size allows for high-density PCB designs.
• High Current Handling: Capable of handling high currents without significant inductance drop.
• Low DC Resistance (DCR): Minimizes power losses and improves efficiency.

Benefits

• Efficient Power Conversion: Low DCR minimizes power losses, improving overall efficiency.
• Reduced EMI: Shielded construction minimizes electromagnetic interference, preventing interference with other components.
• Space Saving: Small form factor allows for compact and efficient PCB designs.
• Reliable Performance: Robust construction ensures stable performance over a wide range of operating conditions.
• Versatile Applications: Suitable for a wide range of power electronic circuits.

Additional Details

The LMNRS6045T100MMGK has a specific inductance value (10µH, as indicated by 100), tolerance, saturation current, and DC resistance (DCR). The saturation current is a critical parameter, indicating the current level at which the inductance starts to drop significantly. The rated current represents the maximum continuous current that the inductor can handle without exceeding its temperature rating. Consult the manufacturer's datasheet for detailed specifications, including inductance value, tolerance, saturation current, rated current, DCR, self-resonant frequency (SRF), and operating temperature range. Proper handling and soldering techniques are essential to ensure reliable performance. This part conforms to RoHS standards, indicating that it is lead-free and compliant with environmental regulations. The 6045 indicates the inductor's dimensions (6.0mm x 4.5mm).
