Same model may have multiple batches, images only for reference.

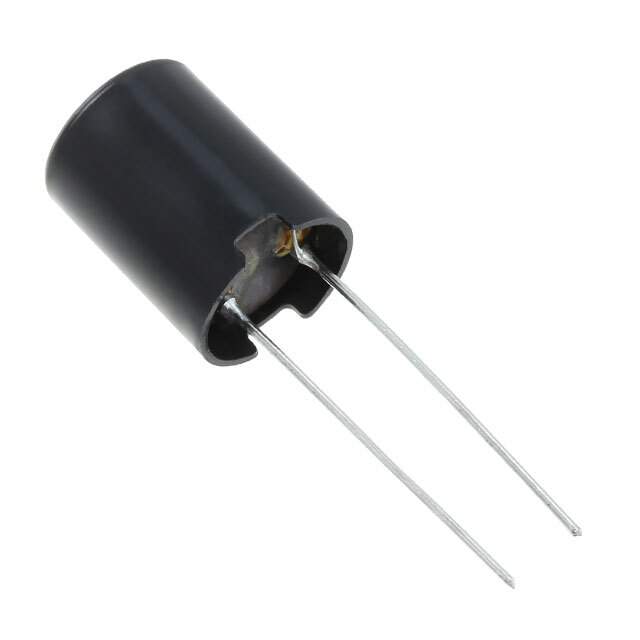

LHL10TB100K Real Image
Same model may have multiple batches, images only for reference.

LHL10TB100K

Part No LHL10TB100K
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 10UH 3.2A 34 MOHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging AMMO PACKAGE
Status Active
Material - Core Ferrite
Inductance 10μH
Tolerance ±10%
Current Rating 3.2A
DC Resistance (DCR) 34 mOhm Max
Q @ Freq 90 @ 2.52MHz
Frequency - Self Resonant 19MHz
Temperature Range - Operating -25°C to 105°C
Frequency - Test 2.52MHz
Mounting Through Hole
Height - Seated (Max) 0.551" (14.00mm)
Win Source Part Number 1052542-LHL10TB100K
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian LHL10TB100K CAD Model

Description

The 1052542-LHL10TB100K is a ferrite core inductor that has an inductance of 10μH and a current rating of 3.2A manufactured by Taiyo Yuden.

  • Inductance: 10μH
  • Current Rating: 3.2A
  • Operating Temperature: -25°C to 105°C
  • DC Resistance: 34 mOhm Max
  • Q @ Freq: 90 @ 2.52MHz
  • Frequency - Self-Resonant: 19MHz
  • Frequency - Test: 2.52MHz
  • Packaging: Ammo
  • Tolerance: ±10%
  • Quantity: 500, balanced
