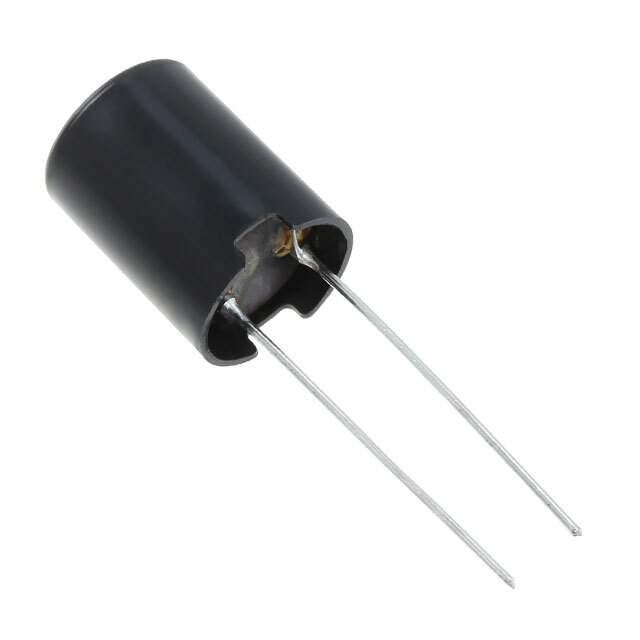

LHL06TB222J Real Image
Same model may have multiple batches, images only for reference.

LHL06TB222J

Part No LHL06TB222J
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2MH 49MA 21 OHM TH
Datasheet
LHL06TB222J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Material - Core Ferrite
Inductance 2.2mH
Tolerance ±5%
Current Rating 49mA
DC Resistance (DCR) 21 Ohm Max
Q @ Freq 50 @ 252kHz
Frequency - Self Resonant 1.6MHz
Temperature Range - Operating -25°C to 105°C
Frequency - Test 252kHz
Mounting Through Hole
Height - Seated (Max) 0.433" (11.00mm)
Win Source Part Number 80327-LHL06TB222J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LHL06TB222J CAD Model

Description

The Taiyo Yuden 80327-LHL06TB222J is a ferrite core inductor with a 2.2mH inductance and a maximum current rating of 49mA.

  • Inductance: 2.2mH
  • Maximum Current Rating: 49mA
  • Tolerance: ±5%
  • DC Resistance: 21 Ohm max
  • Mounting Type: through-hole
  • Height: 0.433" (11.00mm)
  • Self-Resonant Frequency: 1.6MHz
  • Status: obsolete(EOL)
  • Popularity: medium
  • Supply and Demand Status: balanced
