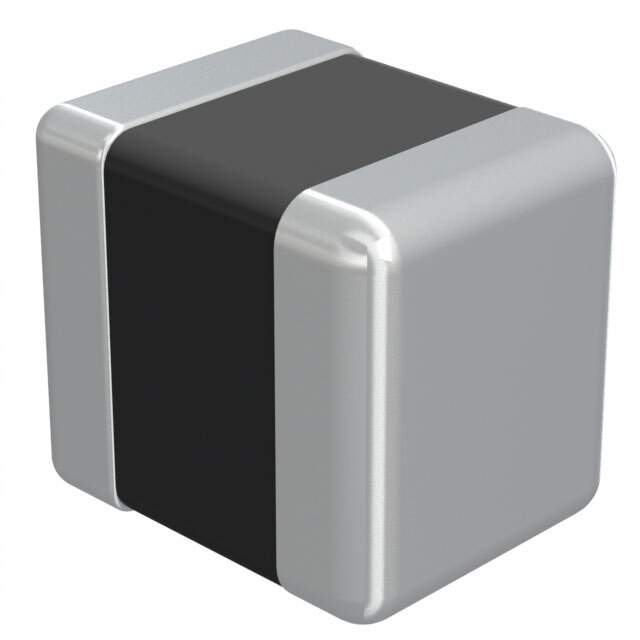

CKP2520N2R2M-T Real Image
Same model may have multiple batches, images only for reference.

CKP2520N2R2M-T

Part No CKP2520N2R2M-T
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 115MOHM SMD / 2.2 µH Unshielded Multilayer Inductor 1.2 A 115mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series CK, P Type
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Shielding Unshielded
DC Resistance (DCR) 115mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 587-3076-2,587-3076-1,CKP2520N2R2MT,LF CKP2520N2R2M-T,587-3076-6
Standard Package 3,000
Win Source Part Number 1128385-CKP2520N2R2M-T
Ultra Librarian 3D Model Ultra Librarian CKP2520N2R2M-T CAD Model

Description

The Taiyo Yuden CKP2520N2R2M-T is a fixed inductor with an inductance of 2.2 μH and a tolerance of ±20%.

  • Manufacturer: Taiyo Yuden
  • Inductance: 2.2 μH
  • Tolerance: ±20%
  • DC Resistance: 115 mOhm max
  • Current Rating: 1.2A
  • Series: CK, P Type
  • Material: Ferrite
  • Application: SMD (SMT) circuits
  • Package: Tape and Reel
  • Package/Case: 1008 (2520 Metric)
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Operating Temperature: -40°C to 85°C
