Same model may have multiple batches, images only for reference.

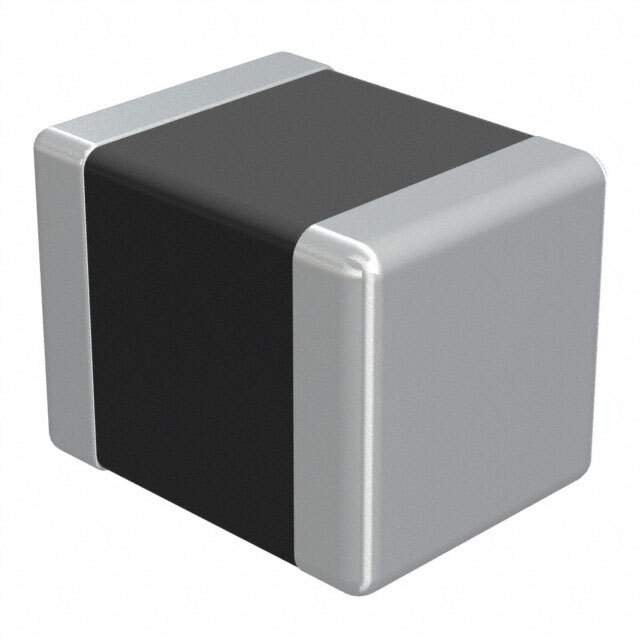

CBC3225T3R3MRV Real Image
Same model may have multiple batches, images only for reference.

CBC3225T3R3MRV

Part No CBC3225T3R3MRV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 3.3UH 850MA 123.5 MOHM / 3.3 µH Unshielded Drum Core, Wirewound Inductor 850 mA 123.5mOhm Max 1210 (3225 Metric)
Datasheet
CBC3225T3R3MRV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series CB, C Type
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 2A
Shielding Unshielded
DC Resistance (DCR) 123.5mOhm Max
Frequency - Self Resonant 160MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.106" (2.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 587-6392-2,CBC3225T3R3MRV-ND,LQ CB C3225T3R3MRV,587-6392-1,587-6392-6
Standard Package 1,000
Win Source Part Number 1172784-CBC3225T3R3MRV
Ultra Librarian 3D Model Ultra Librarian CBC3225T3R3MRV CAD Model

Description

The Taiyo Yuden 1172784-CBC3225T3R3MRV is a high-quality fixed inductor that is designed to be used in various electronic applications.

  • Type: Fixed Inductor
  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 123.5mOhm Max
  • Current Rating (Amps): 850mA
