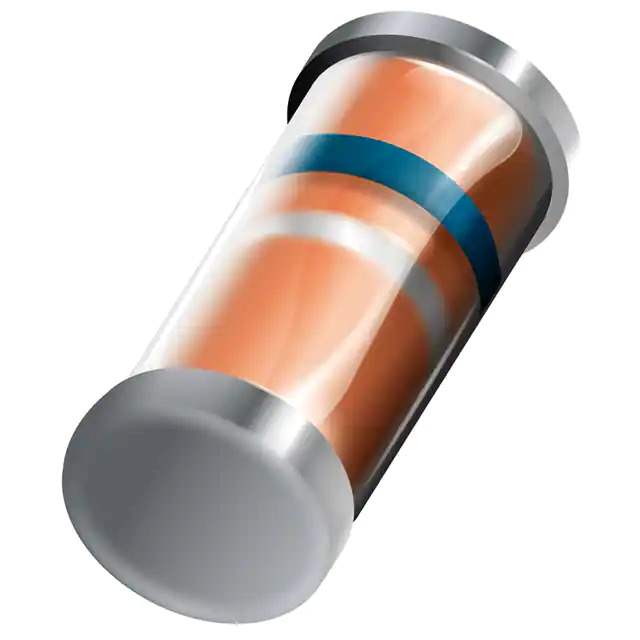

ZM4749A Real Image
Same model may have multiple batches, images only for reference.

ZM4749A

Part No ZM4749A
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description MELF, 1000MW, 5%, SMALL SIGNAL Z
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 24 V
Tolerance ±5%
Power - Max 1 W
Impedance (Max) (Zzt) 25 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 18.2 V
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case DO-213AB, MELF
Supplier Device Package MELF
Base Product Number ZM4749
Standard Package 5,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 700345-ZM4749A
Ultra Librarian 3D Model Ultra Librarian ZM4749A CAD Model

Description

The 700345-ZM4749A is a single zener diode manufactured by Taiwan Semiconductor.

  • Series: ZM4749
  • Application: surface mount
  • Zener voltage: 24V
  • Tolerance: ±5%
  • Maximum power: 1W
  • Impedance: 25 Ohms
  • Reverse leakage current: 5 μA @ 18.2V
  • Operating temperature range: -65°C to 175°C
  • Package: tape & reel
  • Standard quantity: 5,000 pcs
