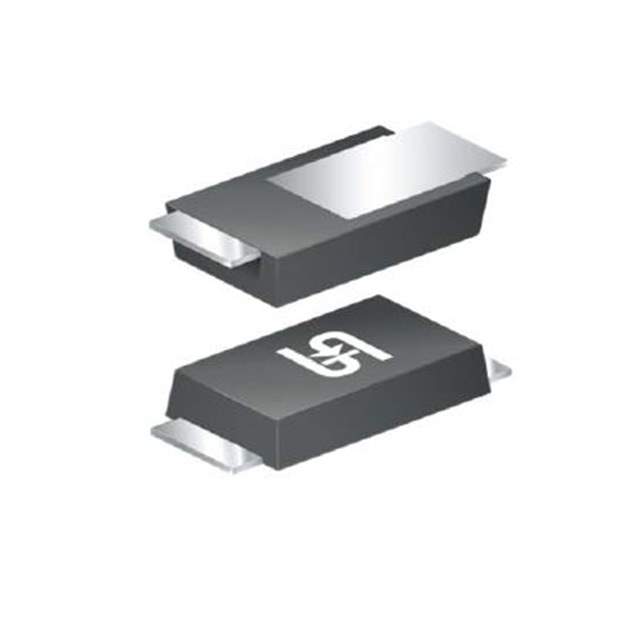

TSSE3U45 RVG Real Image
Same model may have multiple batches, images only for reference.

TSSE3U45 RVG

Part No TSSE3U45 RVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 3A SOD123HE / Diode Schottky 45 V 3A Surface Mount SOD-123HE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 470 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 45 V
Mounting SMD (SMT)
Package / Case SOD-123H
Supplier Device Package SOD-123HE
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number TSSE3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names TSSE3U45 RVGTR,TSSE3U45RVGTR,TSSE3U45RVGDKR,TSSE3U45 RVGDKR-ND,TSSE3U45 RVGDKR,TSSE3U45 RVGTR-ND,TSSE3U45 RVGCT-ND,TSSE3U45 RVGCT,TSSE3U45RVGCT
Standard Package 3,000
Win Source Part Number 1101534-TSSE3U45 RVG
Ultra Librarian 3D Model Ultra Librarian TSSE3U45 RVG CAD Model

Description

The TSSE3U45 RVG from Taiwan Semiconductor Corporation is a high-quality schottky diode that is designed for use in a wide range of electronic applications.

  • Maximum Reverse Voltage: 45V
  • Average Rectified Current: 3A
  • Forward Voltage: 470mV @ 3A
  • Reverse Leakage Current: 1mA @ 45V
  • Required Recovery Times: Less than 500ns
  • Current: Greater than 200mA
  • Package: SOD-123H
  • Supplied On: Tape and Reel
  • Standard Package Size: 3,000 pieces
