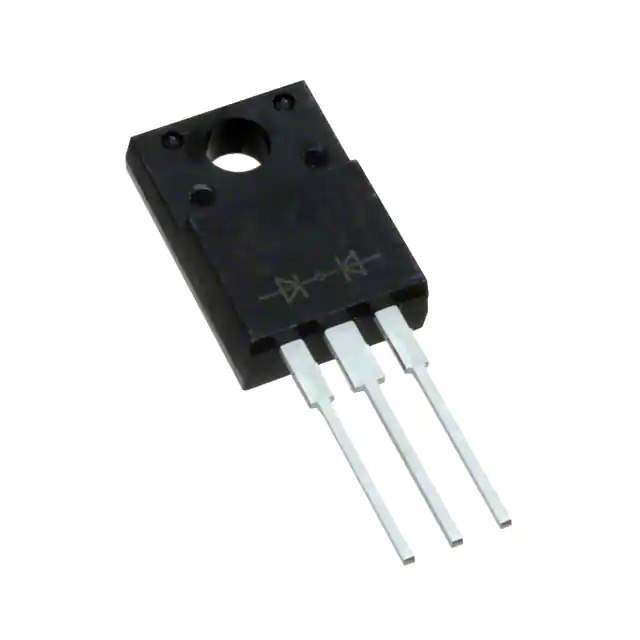

TSF20H120C Real Image
Same model may have multiple batches, images only for reference.

TSF20H120C

Part No TSF20H120C
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTT 120V ITO220AB
Datasheet
TSF20H120C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 120 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 870 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 250 µA @ 120 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Base Product Number TSF20
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 692006-TSF20H120C
Ultra Librarian 3D Model Ultra Librarian TSF20H120C CAD Model

Description

The TSF20H120C is a fast recovery Schottky diode array from Taiwan Semiconductor.

  • Manufacturer: Taiwan Semiconductor
  • Maximum Reverse Voltage: 120V
  • Forward Voltage Drop: 870mV @ 10A
  • Current Rating: 10A
  • Diode Configuration: 1 pair common cathode
  • Mounting: Through-hole
  • Package: TO-220-3 Full Pack, Isolated Tab
  • Operating Temperature Range: -55°C to 150°C
  • Status: Active
  • Category: Discrete Semiconductor Products
