Same model may have multiple batches, images only for reference.

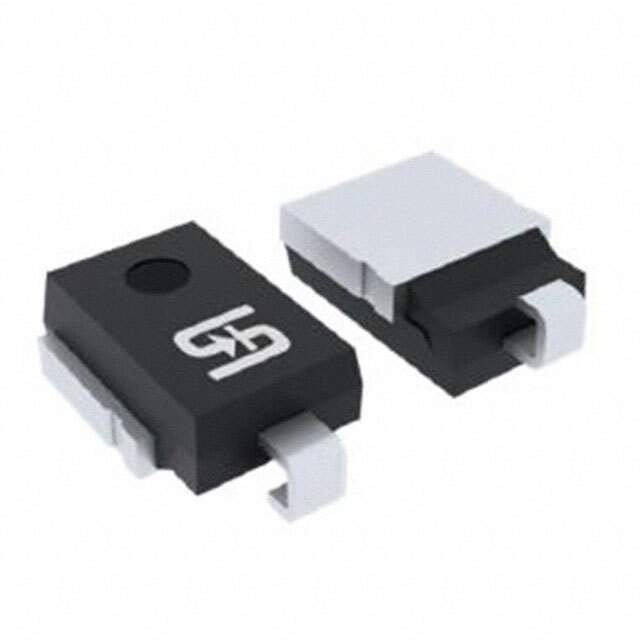

TLD6S28AH Real Image
Same model may have multiple batches, images only for reference.

TLD6S28AH

Part No TLD6S28AH
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 28VWM 45.4VC DO218AB / 45.4V Clamp 101A Ipp Tvs Diode Surface Mount DO-218AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28V
Voltage - Breakdown (Min) 31.1V
Voltage - Clamping (Max) @ Ipp 45.4V
Current - Peak Pulse (10/1000µs) 101A
Power - Peak Pulse 3600W (3.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AB
Supplier Device Package DO-218AB
Base Product Number TLD6S28
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names TLD6S28AHTR,TLD6S28AHCT,TLD6S28AH MAG,TLD6S28AHDKR
Standard Package 750
Win Source Part Number 1089859-TLD6S28AH
Ultra Librarian 3D Model Ultra Librarian TLD6S28AH CAD Model

Description

The TLD6S28AH is a Zener type TVS diode designed for automotive applications.

  • Package: DO-218AB
  • Reverse Standoff Voltage: 28V
  • Breakdown Voltage (Minimum): 31.1V
  • Clamping Voltage (Maximum @ Peak Pulse): 45.4V
  • Peak Pulse Power: 3600W
  • Channel: Unidirectional
  • Peak Pulse Current: 101A
  • Operating Temperature: -55°C to 175°C (TJ)
  • AEC-Q101 Qualified: Yes
  • Suitable for: Circuit protection in automotive applications
