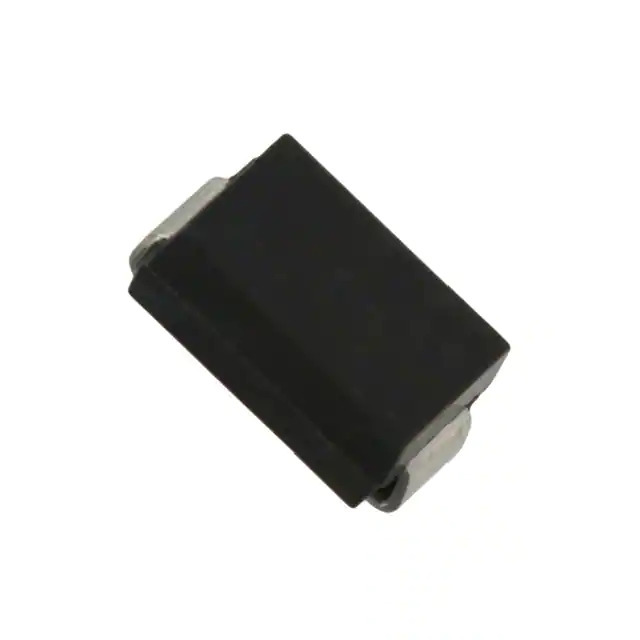

Same model may have multiple batches, images only for reference.
SS26H Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SS26H

Part No SS26H
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 2A DO214AA / Diode 60 V 2A Surface Mount DO-214AA (SMB)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 400 µA @ 60 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SS26
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1357202-SS26H
Ultra Librarian 3D Model Ultra Librarian SS26H CAD Model

Description

The SS26H is a single diode rectifier manufactured by Taiwan Semiconductor Corporation.

  • Diode Type: Single Diode Rectifier
  • Vr - Reverse Voltage: 60 V
  • Io - Average Rectified Current: 2A
  • Package / Case: DO-214AA (SMB)
  • Mounting Type: Surface Mount
  • Vf - Forward Voltage: 700 mV @ 2A
  • Speed: Fast Recovery ≤ 500ns
  • Ir - Reverse Leakage Current: 400 µA @ 60V
  • Operating Temperature: -55°C ~ 150°C
  • Grade: Automotive
