Same model may have multiple batches, images only for reference.

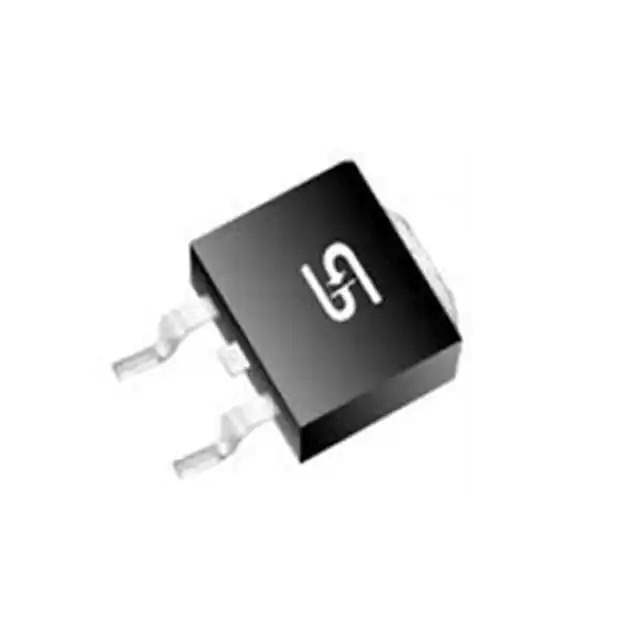

SRAS20150 Real Image
Same model may have multiple batches, images only for reference.

SRAS20150

Part No SRAS20150
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 150V 20A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.02 V @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 150 V
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SRAS20150
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676008-SRAS20150
Ultra Librarian 3D Model Ultra Librarian SRAS20150 CAD Model

Description

The 676008-SRAS20150 is a fast recovery Schottky diode designed for rectification applications.

  • Maximum DC Reverse Voltage: 150V
  • Average Rectified Current: 20A
  • Forward Voltage Drop: 1.02V @ 20A
  • Current Leakage @ Vr: 100μA
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-3, D2PAK
  • Operating Temperature Range: -55°C to 150°C
  • Lifecycle Status: Active
  • Manufacturer: Taiwan Semiconductor
