Same model may have multiple batches, images only for reference.

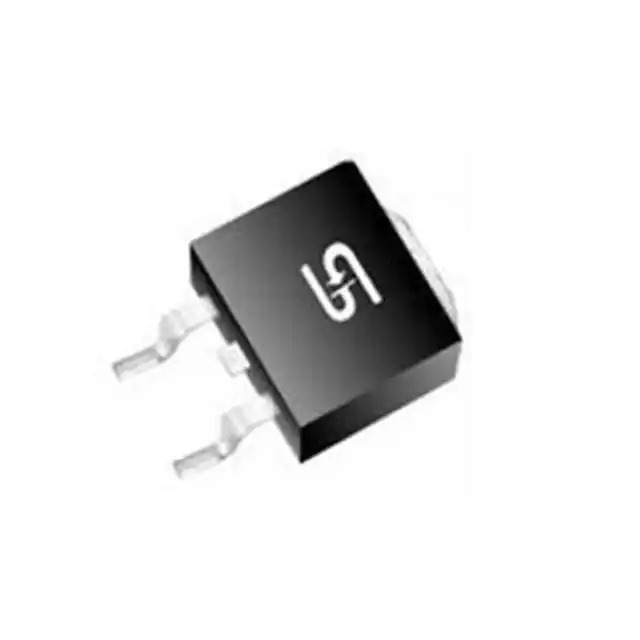

SFAS803GHMNG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SFAS803GHMNG

Part No SFAS803GHMNG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 150V 8A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 150 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D²PAK)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFAS803
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366985-SFAS803GHMNG
Ultra Librarian 3D Model Ultra Librarian SFAS803GHMNG CAD Model

Description

The SFAS803GHMNG is a single diode rectifier manufactured by Taiwan Semiconductor Corporation.

  • Package Type: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: TO-263AB (D²PAK)
  • Maximum DC Reverse Voltage (Vr): 150V
  • Average Rectified Current (Io): 8A
  • Forward Voltage (Vf): 950mV @ 8A
  • Recovery Time: less than 500ns
  • Reverse Recovery Time (trr): 35ns
  • Reverse Leakage Current: 10μA
  • Capacitance: 80pF @ 4V, 1MHz
  • Operating Temperature Range: -55°C to 150°C
