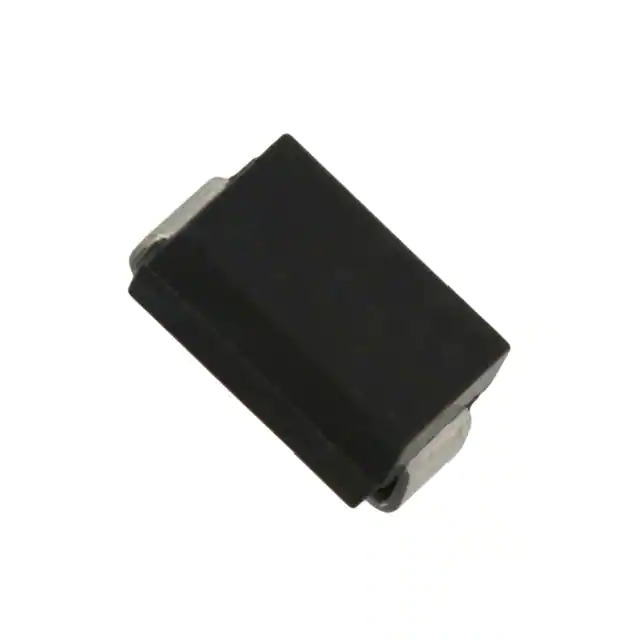

P6SMB33CAH Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

P6SMB33CAH

Part No P6SMB33CAH
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 28.2VWM 45.7VC DO214AA / 45.7V Clamp 13.8A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101, P6SMB
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28.2V
Voltage - Breakdown (Min) 31.4V
Voltage - Clamping (Max) @ Ipp 45.7V
Current - Peak Pulse (10/1000µs) 13.8A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Base Product Number P6SMB33
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362096-P6SMB33CAH
Ultra Librarian 3D Model Ultra Librarian P6SMB33CAH CAD Model

Description

The Taiwan Semiconductor Corporation P6SMB33CAH is a high-quality transient voltage suppressor diode used in various electronic circuits.

  • Reverse Standoff Voltage: 28.2V
  • Breakdown Voltage: 31.4V
  • Peak Pulse Current: 13.8A
  • Package: DO-214AA
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 150°C
  • Applications: Automotive and industrial applications
