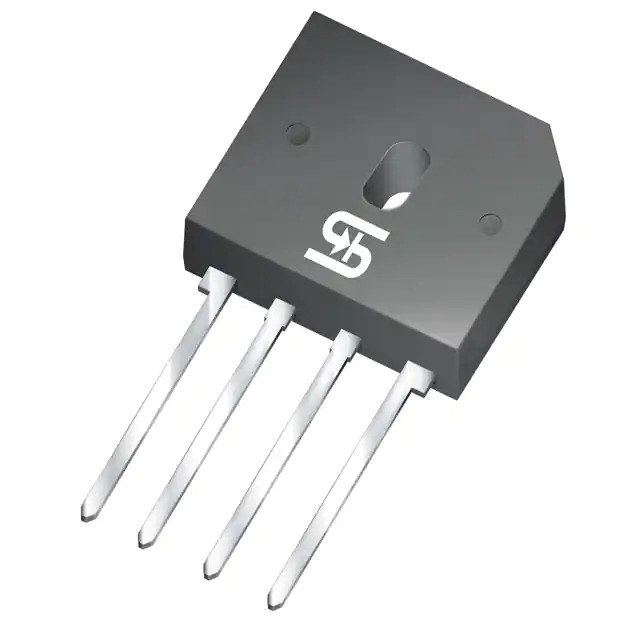

GBU2504 Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

GBU2504

Part No GBU2504
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 400V 25A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor Corporation
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 25 A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU2504
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367874-GBU2504
Ultra Librarian 3D Model Ultra Librarian GBU2504 CAD Model

Description

The Taiwan Semiconductor Corporation GBU2504 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in electronic circuits.

  • Average Rectified Current: 25A
  • Maximum Peak Reverse Voltage: 400V
  • Voltage Forward Drop: 1.2V @ 25A
  • Reverse Leakage Current: 10µA @ 400V
  • Package: 4-SIP, GBU
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 150°C
  • REACH: Unaffected
