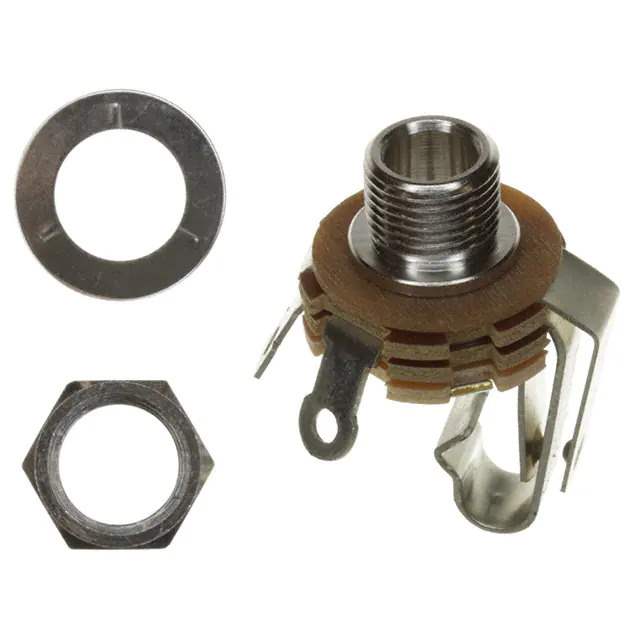

13A Real Image
Same model may have multiple batches, images only for reference.

13A

Part No 13A
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK MONO 6.35MM PNL MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr Switchcraft Inc.
Series LITTEL-JAX®
Package Bulk
Product Status Active
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.250" (6.35mm)
Number of Positions/Contacts 2 Conductors, 4 Contacts
Internal Switch(s) Single Switch
Mounting Type Panel Mount, Through Hole
Termination Solder Eyelet(s)
Shielding Unshielded
Features Mounting Hardware, Thread Lock
Contact Material - Plating Nickel
Body Material Copper Alloy
Body Color Silver
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material Copper Alloy
Panel Hole Size 0.375" (9.52mm)
Thread Size 3/8"-32
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 538580-13A
Ultra Librarian 3D Model Ultra Librarian 13A CAD Model

Description

The LITTEL-JAX® 538580-13A is a female phone jack connector designed for audio applications.

  • Termination: Solder eyelet
  • Shielding: Unshielded
  • Material: High-quality copper alloy
  • Conductors: 2
  • Contacts: 4
  • Package: Bulk package of 100 pcs
  • Includes: Mounting hardware, a thread lock, 1 connector, 1 nut, and 1 washer
  • Panel Hole Size: 0.375" (9.52mm)
  • Mating Diameter: 6.35mm (0.250", 1/4") for headphone applications
  • Body Color: Silver
  • Mounting: Panel mountable or through-hole mountable
  • Temperature Range: -40°C to 65°C
  • Function: Provides secure and reliable audio connections in various electronic devices.
