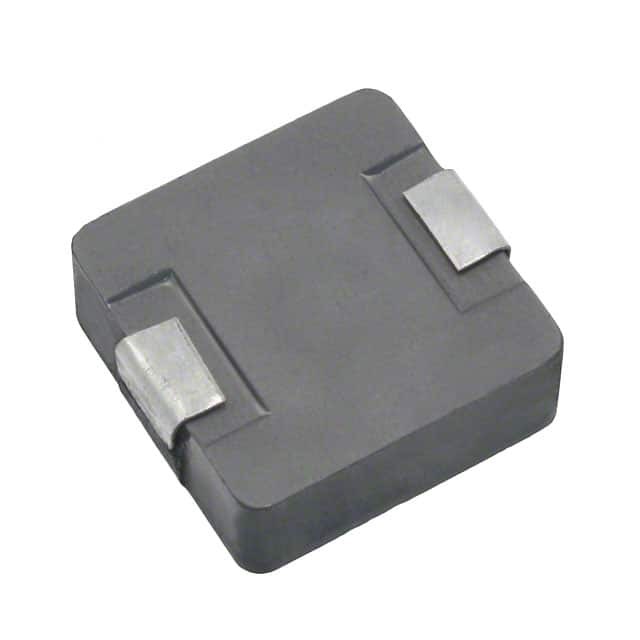

PCMC135T-R56MF
Same model may have multiple batches, images only for reference.

PCMC135T-R56MF

Part No PCMC135T-R56MF
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 560NH 36A 1.5 MOHM SMD / 560 nH Unshielded Inductor 36 A 1.5mOhm Max Nonstandard
Datasheet
PCMC135T-R56MF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Susumu
Series PCMC
Package Tape & Reel
Product Status Obsolete
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 36 A
Current - Saturation (Isat) 55A
Shielding Unshielded
DC Resistance (DCR) 1.5mOhm Max
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) 0.189" (4.80mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 888788-PCMC135T-R56MF
Ultra Librarian 3D Model Ultra Librarian PCMC135T-R56MF CAD Model

Description

The PCMC series fixed inductor, part number 888788-PCMC135T-R56MF, is a high-quality component used in electronic circuits. The 888788-PCMC135T-R56MF is a high-quality component used in electronic circuits.

  • Series: PCMC
  • Type: Fixed Inductor
  • Inductance: 560 nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.5mOhm Max
  • Current Rating: 36 A
  • Mounting: Surface Mountable
  • Package: Nonstandard
  • Size: 0.530" L x 0.496" W (13.45mm x 12.60mm)
  • Height: 0.189" (4.80mm)
  • Manufacturer: Susumu
  • Product Category: Obsolete Inductors, Coils, Chokes - Fixed Inductors
