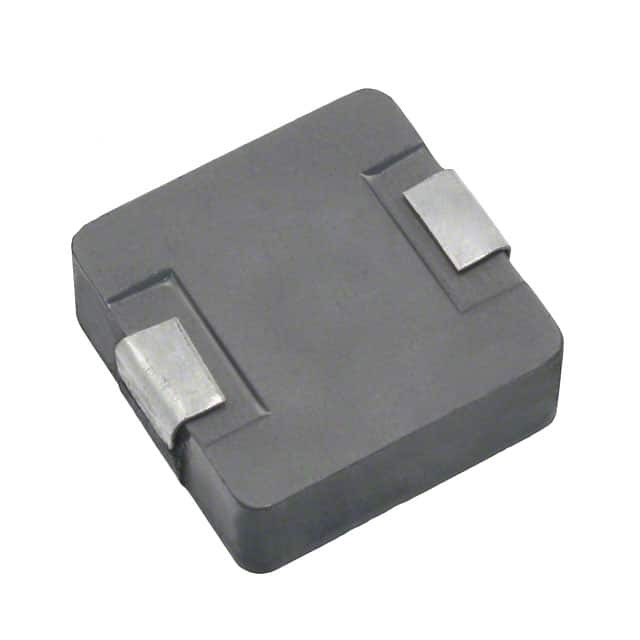

PCMC135T-3R3MF
Same model may have multiple batches, images only for reference.

PCMC135T-3R3MF

Part No PCMC135T-3R3MF
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 3.3UH 15A 9.2 MOHM SMD / 3.3 μH Unshielded Inductor 15 A 9.2mOhm Max Nonstandard
Datasheet
PCMC135T-3R3MF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Susumu
Series PCMC
Package Tape & Reel
Product Status Obsolete
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 32A
Shielding Unshielded
DC Resistance (DCR) 9.2mOhm Max
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) 0.189" (4.80mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 930160-PCMC135T-3R3MF
Ultra Librarian 3D Model Ultra Librarian PCMC135T-3R3MF CAD Model

Description

The 930160-PCMC135T-3R3MF is a fixed inductor from Susumu's PCMC series.

  • Inductance: 3.3 μH
  • Current Rating: 15A
  • Packaging: Tape and reel
  • Standard Package Quantity: 500 pieces
  • Size/Dimension: 0.530" L x 0.496" W (13.45mm x 12.60mm)
  • Seated Height: 0.189" (4.80mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 9.2mOhm maximum
  • ECCN: EAR99
  • MSL Level: 1
  • Status: Obsolete
