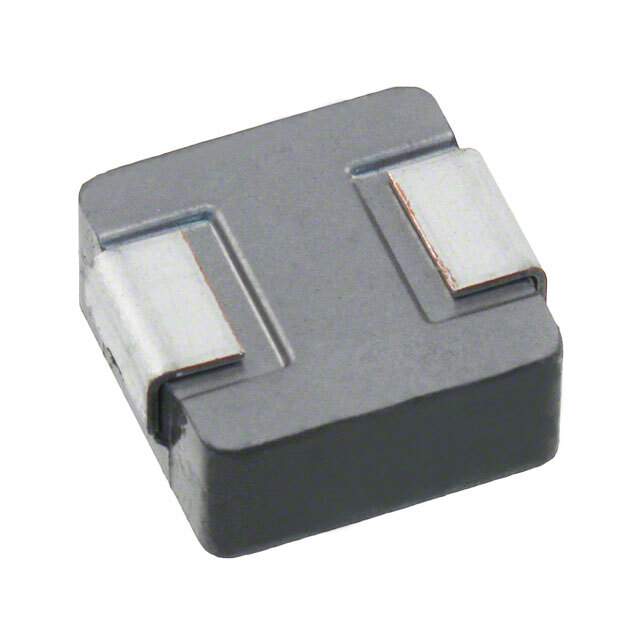

PCMC063T-2R2MN Real Image
Same model may have multiple batches, images only for reference.

PCMC063T-2R2MN

Part No PCMC063T-2R2MN
Manufacturer Susumu
Catalog Fixed Inductors
Description Power Choke Wirewound 2.2uH 20% 8A 0.02Ohm DCR T/R / FIXED IND 2.2UH 8A 20 MOHM SMD
Datasheet
PCMC063T-2R2MN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Packaging Reel - TR
Status Obsolete(EOL)
Inductance 2.2μH
Tolerance ±20%
Current Rating 8A
Current - Saturation 14A
DC Resistance (DCR) 20 mOhm Max
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 120637-PCMC063T-2R2MN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PCMC
Introduction Date October 23, 2008
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PCMC063T-2R2MN CAD Model

Description

The supply and demand status of this component is limited and it is an obsolete product.

  • Component Type: Inductor coil
  • Current Rating: 8A
  • Inductance: 2.2μH
  • Height: 0.118" (3.00mm)
  • Tolerance: ±20%
  • Usage: Commonly used part in the market
