Same model may have multiple batches, images only for reference.

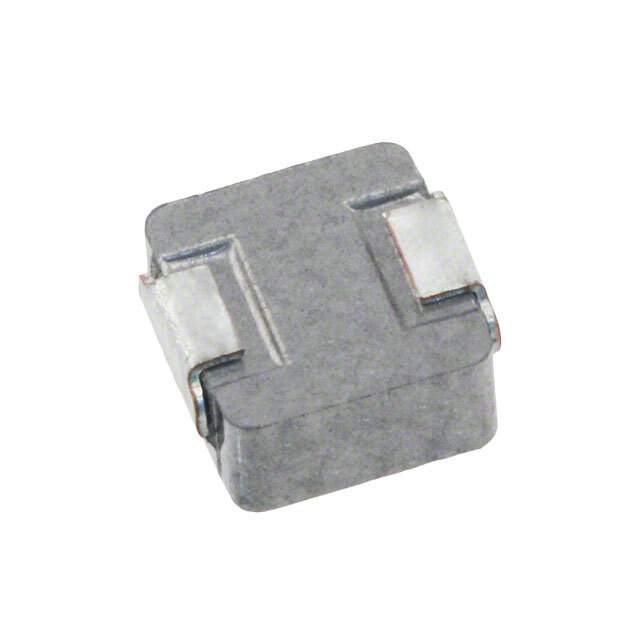

PCMB104T-R56MT Real Image
Same model may have multiple batches, images only for reference.

PCMB104T-R56MT

Part No PCMB104T-R56MT
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 560NH 25A 1.8 MOHM SMD / Power Choke Wirewound 0.56uH 20% 25A 0.0018Ohm DCR 4040 T/R
Datasheet
PCMB104T-R56MT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Series PCMB
Packaging Reel package
Inductance 560nH
Tolerance ±20%
Current Rating 25A
Current - Saturation 33A
Shielding Unshielded
DC Resistance (DCR) 1.8 mOhm Max
Mounting SMD
Package Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Maximum) 0.150" (3.80mm)
Win Source Part Number 791592-PCMB104T-R56MT
Popularity Medium
Supply and Demand Status Balance
Family Name PCMB
Introduction Date October 23, 2008
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PCMB104T-R56MT CAD Model

Description

The Susumu 791592-PCMB104T-R56MT is a non-standard inductor that belongs to the category of inductors, coils, and chokes. The supply and demand status is balanced.

  • Inductance: 560nH
  • Current Rating: 25A
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.8 mOhm Max
  • Packaging: reel
  • Dimensions: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Manufacturer: Susumu
  • Estimated EOL Date: 2027
