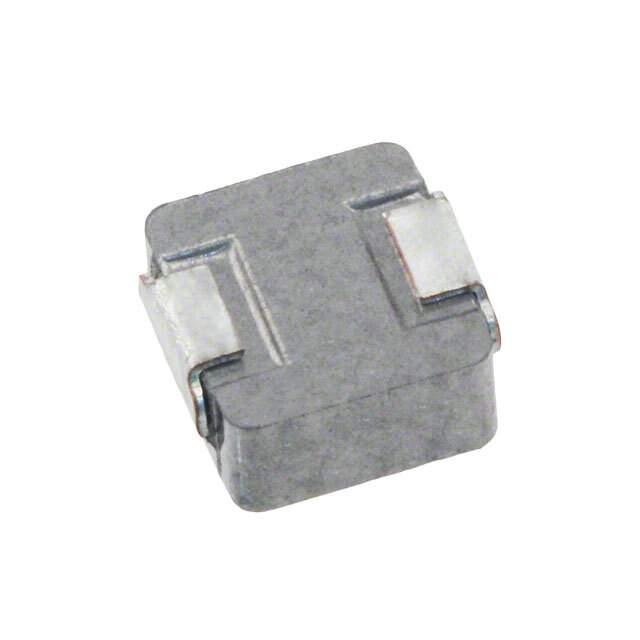

PCMB042T-R47MS Real Image
Same model may have multiple batches, images only for reference.

PCMB042T-R47MS

Part No PCMB042T-R47MS
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 470NH 7A 14 MOHM SMD / Power Choke Wirewound 0.47uH 20% 7A 0.012Ohm DCR T/R
Datasheet
PCMB042T-R47MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Series PCMB
Packaging Reel package
Inductance 470nH
Tolerance ±20%
Current Rating 7A
Current - Saturation 9.5A
Shielding Unshielded
DC Resistance (DCR) 14 mOhm Max
Mounting SMD
Package Nonstandard
Dimension 0.163" L x 0.157" W (4.15mm x 4.00mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Win Source Part Number 791585-PCMB042T-R47MS
Popularity Medium
Supply and Demand Status Balance
Family Name PCMB
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PCMB042T-R47MS CAD Model

Description

The Susumu PCMB042T-R47MS is a surface mount inductor with a nominal inductance of 470nH and a current rating of 7A.

  • Inductance: 470nH
  • Current Rating: 7A
  • Tolerance: ±20%
  • DC Resistance (DCR): 14 mOhm max
  • Shielding: unshielded
  • Mounting: SMD
  • Height: 0.071" (1.80mm)
  • Dimensions: 0.163" L x 0.157" W (4.15mm x 4.00mm)
  • Series: PCMB
  • Packaging: reel
