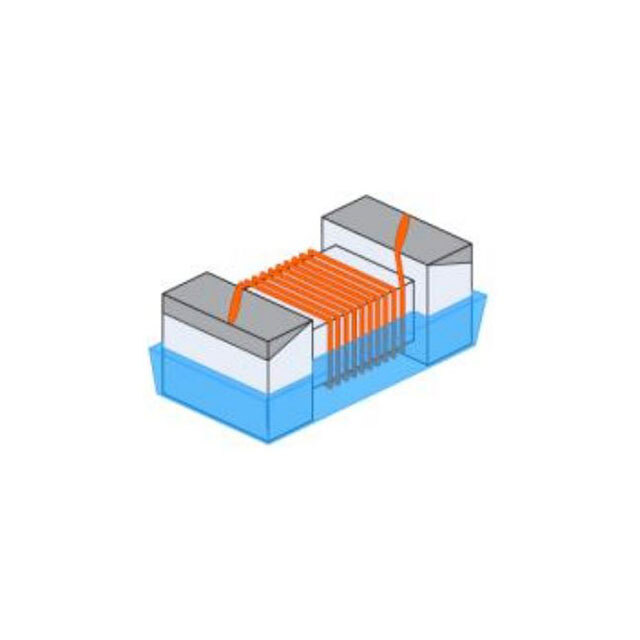

SDWL1608CPR27GSTF Sunlord
Same model may have multiple batches, images only for reference.

SDWL1608CPR27GSTF

Part No SDWL1608CPR27GSTF
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 270NH 260MA 2.25OHM SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series SDWL-CP
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 270 nH
Tolerance ±2%
Current Rating (Amps) 260 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 2.25Ohm Max
Q @ Freq 46 @ 250MHz
Frequency - Self Resonant 1.05GHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.067" L x 0.043" W (1.70mm x 1.10mm)
Height - Seated (Max) 0.043" (1.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370156-SDWL1608CPR27GSTF
Ultra Librarian 3D Model Ultra Librarian SDWL1608CPR27GSTF CAD Model

Description

The 1370156-SDWL1608CPR27GSTF is a drum core, wirewound inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd.

  • Series: SDWL-CP
  • Status: Active
  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Size: 0.067" L x 0.043" W (1.70mm x 1.10mm)
  • Height: 0.043" (1.10mm)
  • Inductance: 270 nH
  • Tolerance: ±2%
  • DC Resistance (DCR): 2.25 Ohm (Max)
  • Q Value: 46 @ 250MHz
  • Self Resonant Frequency: 1.05GHz
  • Temperature Range: -40°C to 125°C
  • Shielded: No
  • Current Rating: 260 mA
