Same model may have multiple batches, images only for reference.

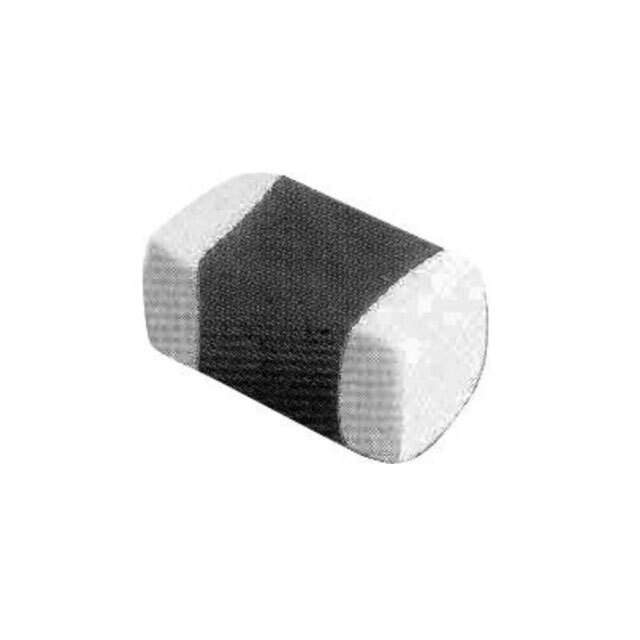

MPH252012C2R2MT Real Image
Same model may have multiple batches, images only for reference.

MPH252012C2R2MT

Part No MPH252012C2R2MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.1A 312MOHM SMD / 2.2 µH Shielded Multilayer Inductor 1.1 A 312mOhm Max 1008 (2520 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Shenzhen Sunlord Electronics Co., Ltd.
Packaging Reel - TR
Type Multilayer
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.35A
Shielding Shielded
DC Resistance (DCR) 312mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 3442-MPH252012C2R2MTTR
Standard Package 3,000
Win Source Part Number 1328874-MPH252012C2R2MT
Ultra Librarian 3D Model Ultra Librarian MPH252012C2R2MT CAD Model

Description

The Shenzhen Sunlord Electronics Co., Ltd. MPH252012C2R2MT is a surface-mount fixed inductor.

  • Shielding: Shielded
  • Size: 2.50mm x 2.00mm
  • Inductance: 2.2 μH
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 312mOhm
  • Current Rating: 1.1A
  • AEC-Q200: Yes
  • Units per Reel: 3,000
  • Seated Height: 1.20mm
  • Supplier Device Package: 1008
  • Operating Temperature: -55°C to 125°C
