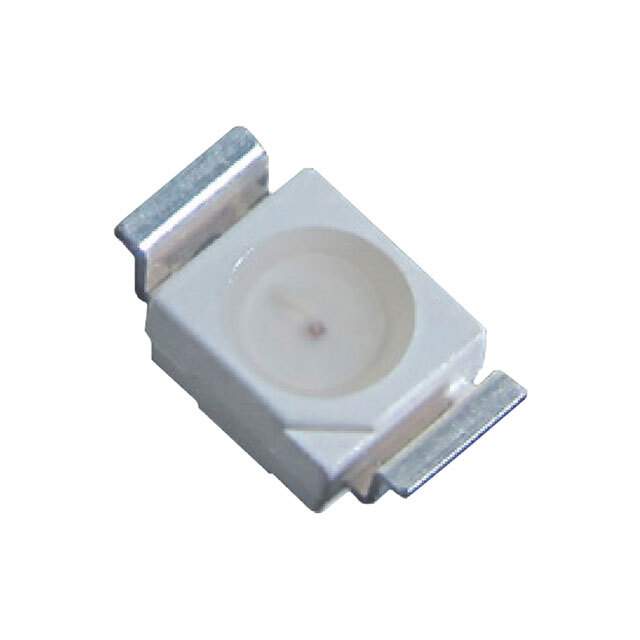

XZM2MOK45WT-9 Real Image
Same model may have multiple batches, images only for reference.

XZM2MOK45WT-9

Part No XZM2MOK45WT-9
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR 2PLCC SMD / Orange 605nm LED Indication - Discrete 2.2V 2-SMD, Z-Bend
Datasheet
XZM2MOK45WT-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr SunLED
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 795mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 605nm
Wavelength - Peak 611nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package 2-PLCC
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 2.15mm
Base Product Number XZM2MOK45
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1340031-XZM2MOK45WT-9
Ultra Librarian 3D Model Ultra Librarian XZM2MOK45WT-9 CAD Model

Description

The SunLED XZM2MOK45WT-9 is a surface mount LED with a 120-degree viewing angle and a clear lens.

  • Viewing Angle: 120°
  • Lens Color: Clear
  • Millicandela Rating: 795mcd
  • Wavelength - Dominant: 605nm
  • Voltage - Forward (Vf) (Typ): 2.2V
  • Current - Test: 20mA
  • Package / Case: 2-SMD, Z-Bend
  • Lens Style: Round with Flat Top
  • Lens Size: 2.40mm Dia
  • Applications: Optoelectronics, LED Indication, Discrete
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2,000
  • Manufacturer: SunLED
