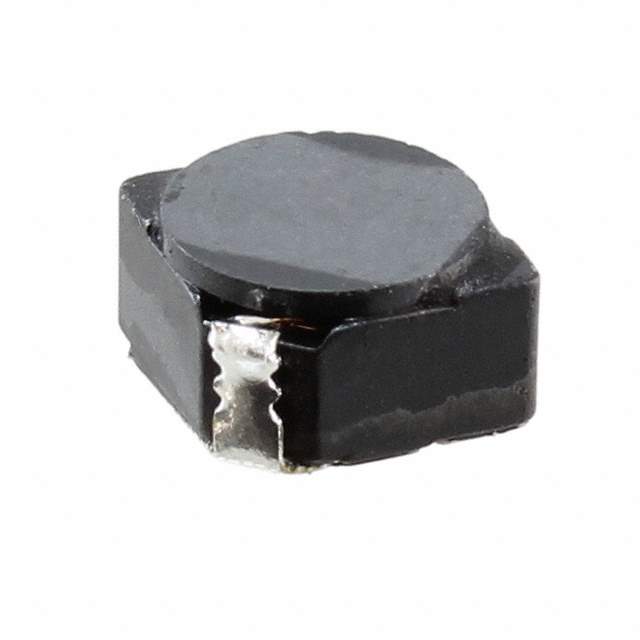

CDRH4D28NP-150NC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D28NP-150NC

Part No CDRH4D28NP-150NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 760MA 149MOHM SMD / 15 µH Shielded Inductor 760 mA 149mOhm Max Nonstandard
Datasheet
CDRH4D28NP-150NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 15 µH
Tolerance ±30%
Current Rating (Amps) 760 mA
Shielding Shielded
DC Resistance (DCR) 149mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number CDRH4D28NP-150NCTR
Standard Package 2,000
Win Source Part Number 1327490-CDRH4D28NP-150NC
Ultra Librarian 3D Model Ultra Librarian CDRH4D28NP-150NC CAD Model

Description

The Sumida America Components Inc. CDRH4D28NP-150NC is a fixed inductor electronic component with an inductance of 15 µH and a maximum DC resistance of 149mOhm.

  • Inductance: 15 µH
  • DC Resistance: 149mOhm Max
  • Case/Package: Nonstandard
  • Shielded: Yes
  • Size/Dimension: 0.185" L x 0.185" W (4.70mm x 4.70mm)
  • Height Seated: 0.118" (3.00mm)
  • Tolerance: ±30%
  • Temperature Range: -40°C to 100°C
  • Current Rating: 760 mA
  • Inductance Frequency Test: 100 kHz
  • Category: Inductors, Coils, Chokes
  • Packaging: Reel - TR
  • Standard Package: 2,000
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
  • Other Part Number: CDRH4D28NP-150NCTR
