Same model may have multiple batches, images only for reference.

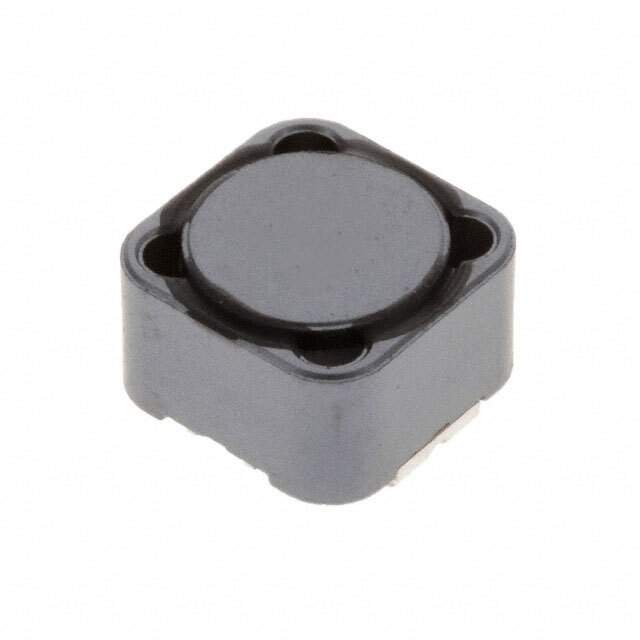

CDRH127L125NP-100MC Real Image
Same model may have multiple batches, images only for reference.

CDRH127L125NP-100MC

Part No CDRH127L125NP-100MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 6A 23.6 MOHM SMD / 10 µH Shielded Drum Core Inductor 6 A 23.6mOhm Max Nonstandard, Corner Terminals
Datasheet
CDRH127L125NP-100MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH127/L125
Package Tape & Reel (TR) Cut Tape (CT)
Type Drum Core
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 8.4A
Shielding Shielded
DC Resistance (DCR) 23.6mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard, Corner Terminals
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1351000-CDRH127L125NP-100MC
Ultra Librarian 3D Model Ultra Librarian CDRH127L125NP-100MC CAD Model

Description

The CDRH127L125NP-100MC is a fixed inductor from Sumida America Components Inc. that belongs to the CDRH127/L125 series.

  • Type: Drum Core
  • Shielding: Shielded
  • Packaging: Tape and Reel (TR) Cut Tape (CT)
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height: 0.315" (8.00mm) Max Seated
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance (DCR): 23.6mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mount
