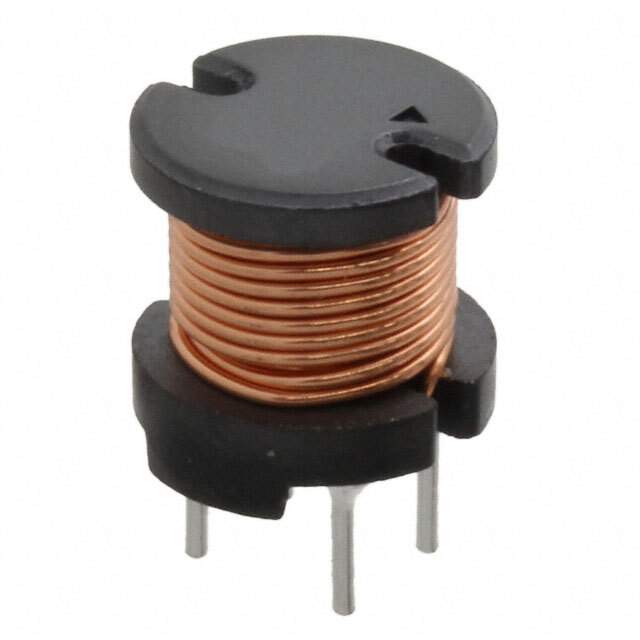

RCH110NP-680K Real Image
Same model may have multiple batches, images only for reference.

RCH110NP-680K

Part No RCH110NP-680K
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 68UH 2.1A 120 MOHM TH / 68 µH Unshielded Drum Core, Wirewound Inductor 2.1 A 120mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Datasheet
RCH110NP-680K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series RCH-110
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 2.1 A
Shielding Unshielded
DC Resistance (DCR) 120mOhm Max
Frequency - Self Resonant 6.3MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads (Open)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-2089
Standard Package 100
Win Source Part Number 1021761-RCH110NP-680K
Ultra Librarian 3D Model Ultra Librarian RCH110NP-680K CAD Model

Description

The RCH-110NP-680K is a drum core wirewound inductor from Sumida America Components Inc.

  • Type: Unshielded
  • Inductance: 68 μH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • DC Resistance: 120mOhm Max
  • Current Rating: 2.1A
  • Frequency Self-Resonant: 6.3MHz
  • Mounting Type: Through Hole
  • Package: Radial, Vertical Cylinder, 4 Leads (Open)
  • Temperature Range: -40°C ~ 100°C
