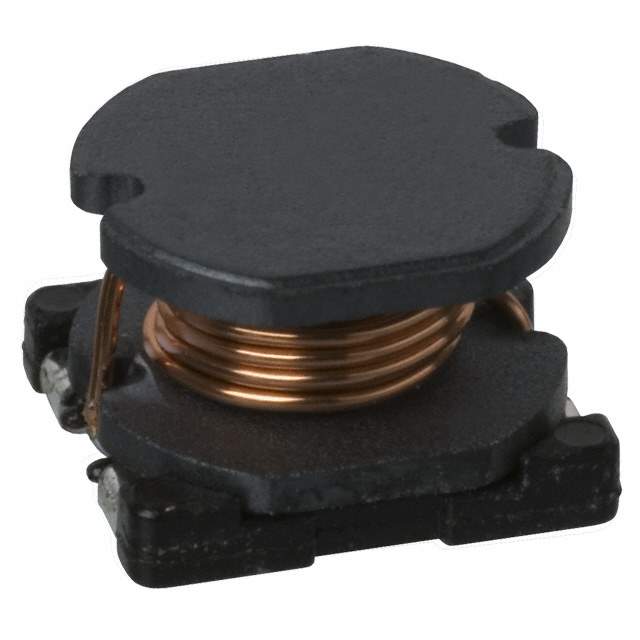

CR75NP-121KC Real Image
Same model may have multiple batches, images only for reference.

CR75NP-121KC

Part No CR75NP-121KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 120UH 660MA 470MOHM SM / 120 µH Unshielded Drum Core, Wirewound Inductor 660 mA 470mOhm Max Nonstandard
Datasheet
CR75NP-121KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CR75
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 120 µH
Tolerance ±10%
Current Rating (Amps) 660 mA
Shielding Unshielded
DC Resistance (DCR) 470mOhm Max
Frequency - Self Resonant 7.7MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CR75NP-121KCTR
Standard Package 1,000
Win Source Part Number 1220607-CR75NP-121KC
Ultra Librarian 3D Model Ultra Librarian CR75NP-121KC CAD Model

Description

The CR75NP-121KC is a fixed inductor from Sumida America Components Inc. with an inductance of 120 μH.

  • Inductor Type: Drum Core, Wirewound
  • Package: Tape and Reel
  • Shielding: Unshielded
  • Core Material: Ferrite
  • Maximum Seated Height: 5.50mm
  • Tolerance: ±10%
  • DC Resistance (DCR): 470mOhm Max
  • Current Rating: 660mA
  • Package Type: Nonstandard
  • ECCN: EAR99
